Запчасти Case TR320 (10.216.AI) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

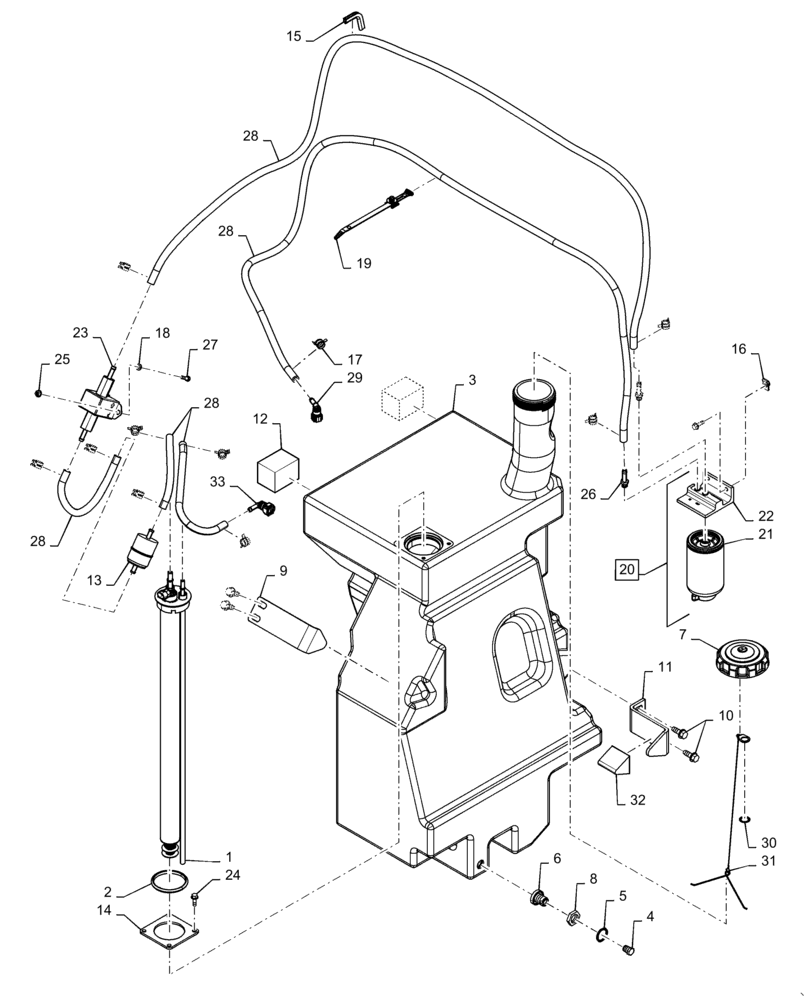

Схема запчастей Case TR320 - (10.216.AI) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE
22
29
28
7
23
13
30
19
24
3
9
8
2
17
5
16
28
33
26
31
15
32
18
28
20
11
10
6
28
12
25
21
4
14
1
27

Артикул

Название

Примечание

Количество

1

84268571

SENDER UNIT

Fuel Incl 2

1шт.

2

84485157

SEAL

Fuel Sender

1шт.

3

47477757

FUEL TANK

Assy Incl 4 -8

1шт.

4

9576801

PLUG,1/4" - 18 NPT

1шт.

5

9706714

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

6

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Fitting Fuel Tank Drain

1шт.

7

48088756

Fuel, With Check Valve

FILLER CAP

1шт.

8

1251791C1

JAM NUT,3/4" - 16 LH Thread

Fuel Tank Drain Fitting

1шт.

9

84273624

BRACKET

Fuel Tank

1шт.

10

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

11

87054825

SUPPORT

Tank

1шт.

12

47357144

FOAM INSULATION,70mm L x 50.8mm W x 50.8mm H

Deck

2шт.

13

87548612

FUEL FILTER

In-Line, Years: -17-JUN-13

1шт.

13

47462791

FUEL FILTER

In-Line, Start Year: 18-JUN-13

1шт.

14

84338049

MOUNTING PLATE

Sender Retaining

1шт.

15

87702286

TRIM,Bulk, 1/8" x 30480mm L

85.3mm

1шт.

16

86625073

SPRING NUT,M6 x 1

2шт.

17

87436932

CLAMP,13.9mm - 15.5mm, Spring

10шт.

18

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

19

84259663

CABLE TIE,228.6mm L, Nylon, Black

4шт.

20

84299976

FILTER ASSY

Filter Assy, Incl 21, 22

1шт.

21

84299977

ELEMENT

Fuel

1шт.

22

87042231

FILTER HEAD

Fuel

1шт.

23

47420302

FUEL PUMP,12V, 3A

Electric Lift

1шт.

24

9804256

BOLT,Hex, M6 x 1 x 20mm, Full Thd, Cl 8.8

6шт.

25

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

26

9844342

FITTING,7/16" - 20 x 8mm Hose x 41.90mm OAL, Incl O-Ring

2шт.

27

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

28

290323

HOSE,5/16" ID x 500 FT L, SAE 30R7

15.8'

1шт.

29

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

2шт.

30

84367737

LOCK WASHER,22.6mm OD x 1.27mm Thk

Fuel Cap

1шт.

31

84370069

CHAIN

Fuel Cap

1шт.

32

84602030

PAD

Triangle

2шт.

33

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

2шт.

Выбрано товаров: 34
