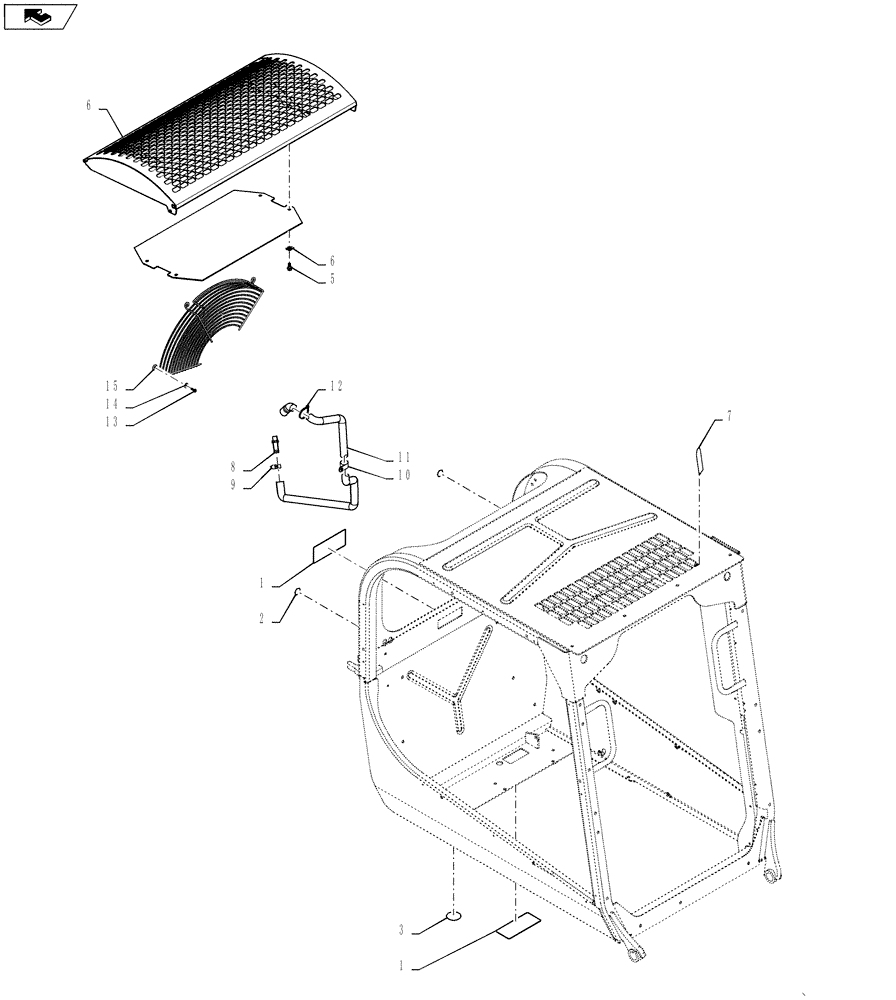

Запчасти Case TR320 (50.200.01) - OPEN CAB, NO HEAT OR HVAC (ALL CASE) (50) - CAB CLIMATE CONTROL

1

84312310

COVER,165mm L x 70mm W x 1.70mm Thk

Plate, Gray

2шт.

2

414635A1

COVER,25.4mm OD x 0.51mm Thk

Lexan Gray

2шт.

3

84357636

DECAL,53mm OD, Gray

Plug

1шт.

4

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

5

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

6

84331307

SCREEN

No AC, Tilt Hood, Gray

1шт.

7

84353623

DECAL

HVAC Blank

1шт.

8

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

9

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

10

86637995

CLAMP,27mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

11

84333356

TUBE

Heater, Loop

1шт.

12

L11541

CABLE TIE,203.2mm L, Nylon

Nylon Tie, 7-8in

1шт.

13

84137412

SCREW,Hex Flng, M6 x 18mm

Bosscrew, M6 X 18

3шт.

14

86624182

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

3шт.

15

84335903

GUARD

Fan

1шт.
