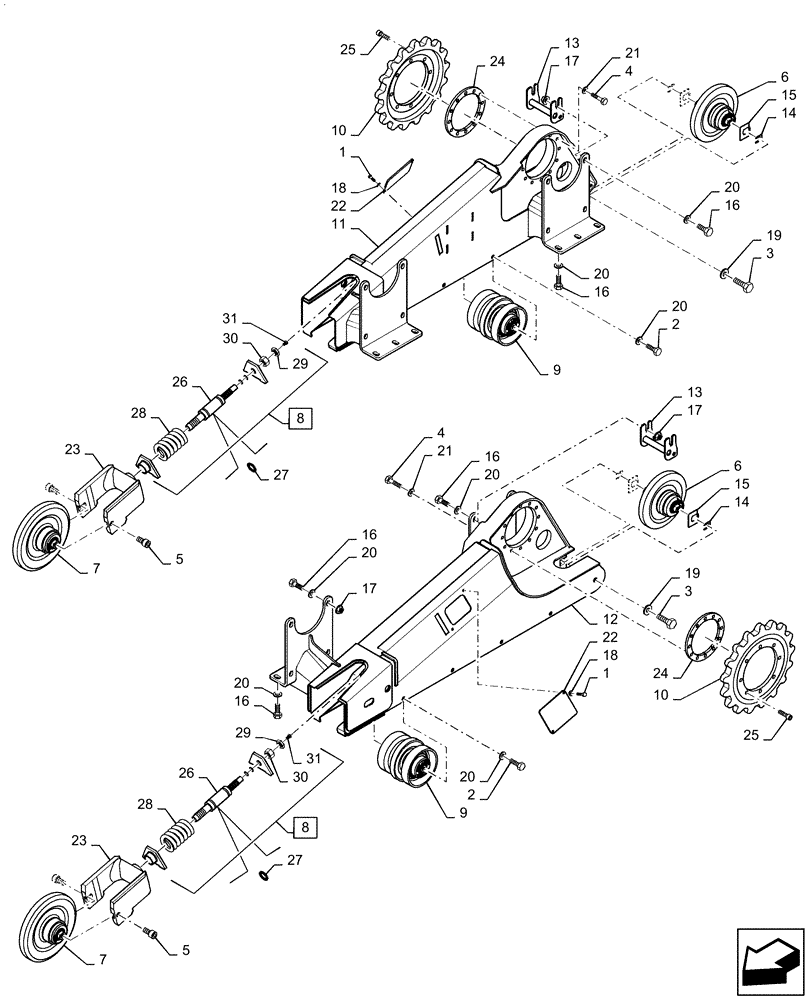

Запчасти Case TR320 (48.138.AB) - TRACK ASSY, UNDERCARRIAGE (19-NOV-2015 & PRIOR) (48) - TRACKS & TRACK SUSPENSION

1

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

2

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

3

9512573

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

4шт.

4

11116431

BOLT,Hex, M14 x 2 x 60mm, Cl 10.9

24шт.

5

14301821

HEX SOC SCREW,M10 x 16mm, Cl 8.8, Full Thd

4шт.

6

87480413

IDLER,290mm OD x 220mm W

Rear, Years: -14-OCT-12

2шт.

6

47378988

IDLER,290mm OD

Rear, Start Year: 15-OCT-12

2шт.

7

87480418

FRONT IDLER,350mm OD x 194mm W

, Years: -14-OCT-12

2шт.

7

47378990

FRONT IDLER,350mm OD

, Start Year: 15-OCT-12

2шт.

8

87602985

TENSIONER

Spring, Incl 26, 27, 31, Years: -16-AUG-13

2шт.

8

47378991

TENSIONER

Spring, Incl 26, 28 - 31, Start Year: 17-AUG-13

2шт.

9

47378992

TRACK ROLLER,214mm OD x 228.3mm L

8шт.

10

47378993

SPROCKET,17T

2шт.

11

84268651

FRAME

RH

1шт.

12

84268654

FRAME

LH

1шт.

13

84465143

BRACKET

Track Strut

2шт.

14

84491877

SHIM,31mm OD x 1.7mm Thk

Track Idler

4шт.

15

84491878

RETAINER

Track Idler

4шт.

16

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

12шт.

17

86512498

FLANGE NUT,M16 x 2, Cl 10

16шт.

18

86624184

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

19

86629891

WASHER,19.8mm ID x 41.5mm OD x 5mm Thk

4шт.

20

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

28шт.

21

87016615

WASHER,15.3mm ID x 28.5mm OD x 3mm Thk

24шт.

22

87354210

COVER

Plate

2шт.

23

87462287

YOKE

Front Idler

2шт.

24

87583105

SPACER,214mm ID x 280mm OD x 13.25mm Thk

Motor

2шт.

25

87619750

HEX SOC SCREW,M16 x 2 x 45mm, Cl 12.9

16шт.

26

87602988

ROD

Piston, Years: -16-AUG-13

2шт.

26

47428172

PISTON

410mm L, Start Year: 17-AUG-13

2шт.

27

87602987

SERVICE KIT

Services 8, Years: -16-AUG-13

2шт.

27

47428174

SEAL KIT

Services 8, Start Year: 17-AUG-13

2шт.

28

47431257

TENSION SPRING

7 coils

2шт.

29

47432815

JAM NUT,Hex, M36 x 3, Cl 4

Thin

2шт.

30

47432628

NUT,Hex, M36 x 3mm Pitch, CL 8

2шт.

31

87356572

VALVE

Zerk, Years: -16-AUG-13

2шт.

Cap: 84213764

1шт.

31

79043802

FITTING,Zerk, M18 x 1.5

Zerk, Start Year: 17-AUG-13

2шт.
