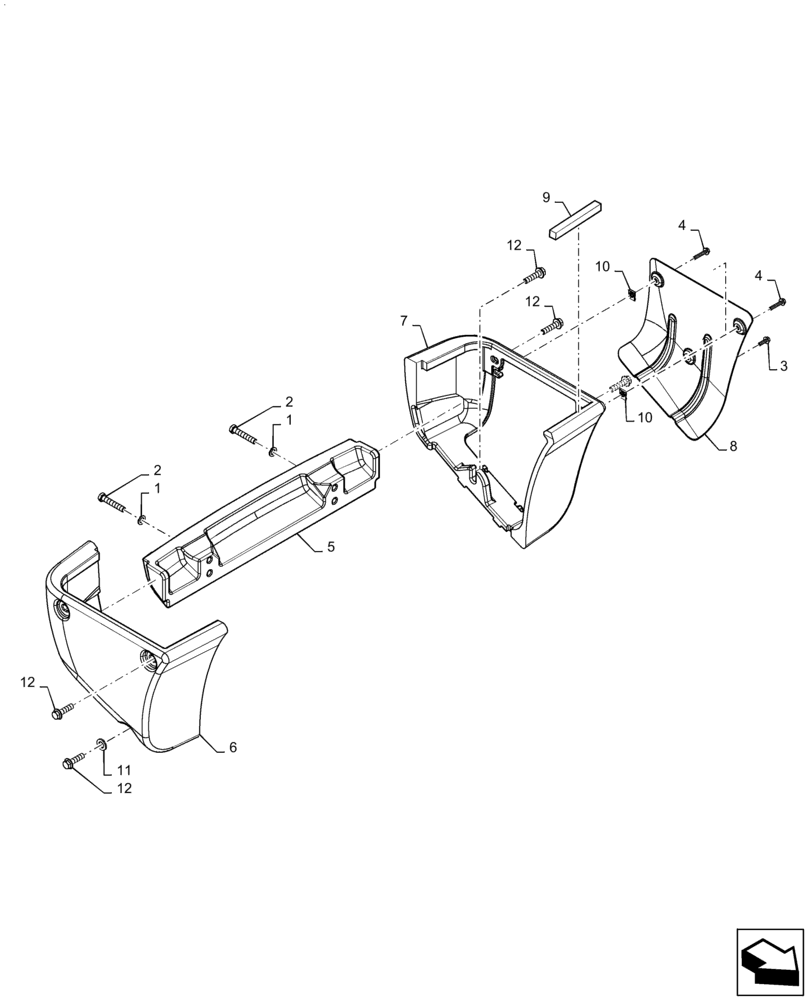

Запчасти Case TR320 (39.140.01) - COUNTERWEIGHT (39) - FRAMES AND BALLASTING

1

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

2

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

3

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

4

9804264

FLANGE BOLT,M10 x 50mm, 26mm Thd, Cl 8.8

2шт.

5

84272808

BUMPER

Center Bumper

1шт.

6

84272810

BUMPER

RH Bumper

1шт.

7

84272812

BUMPER

LH Bumper

1шт.

8

84273168

COVER PLATE

Battery Compartment

1шт.

9

84355546

FOAM INSULATION,215mm L

Strip, 215mm OAL

1шт.

10

86625071

SPRING NUT,M10 x 1.5

3шт.

11

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

12

87675533

BOLT,M16 x 75.4mm, Cl 10.9

6шт.
