(39.105.01[02]) - SERVICE FRAME, COUPLER, TRACK UNITS

Запчасти Case TR320 (39.105.01[02]) - SERVICE FRAME, COUPLER, TRACK UNITS (39) - FRAMES AND BALLASTING

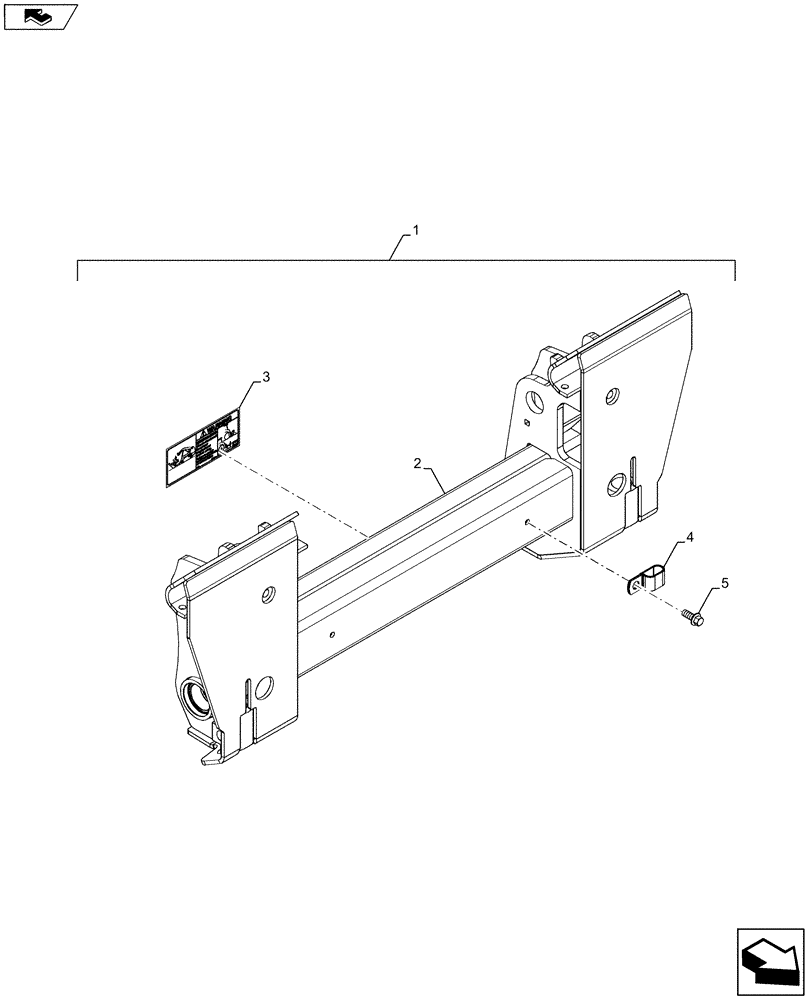

Схема запчастей Case TR320 - (39.105.01[02]) - SERVICE FRAME, COUPLER, TRACK UNITS (39) - FRAMES AND BALLASTING
2
4
3
5
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47550003

KIT

Service Frame and Coupler, Incl 2 - 5, For Large Frame Track Units Only

1шт.

2

47547478

FRAME

1шт.

3

84367561

WARNING DECAL

Crush Hazzard

1шт.

4

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

1шт.

5

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

1шт.

Выбрано товаров: 5
