Запчасти Case TR320 (10.304.AF) - ENGINE OIL FILTER, REMOTE (NEW STYLE) (10) - ENGINE

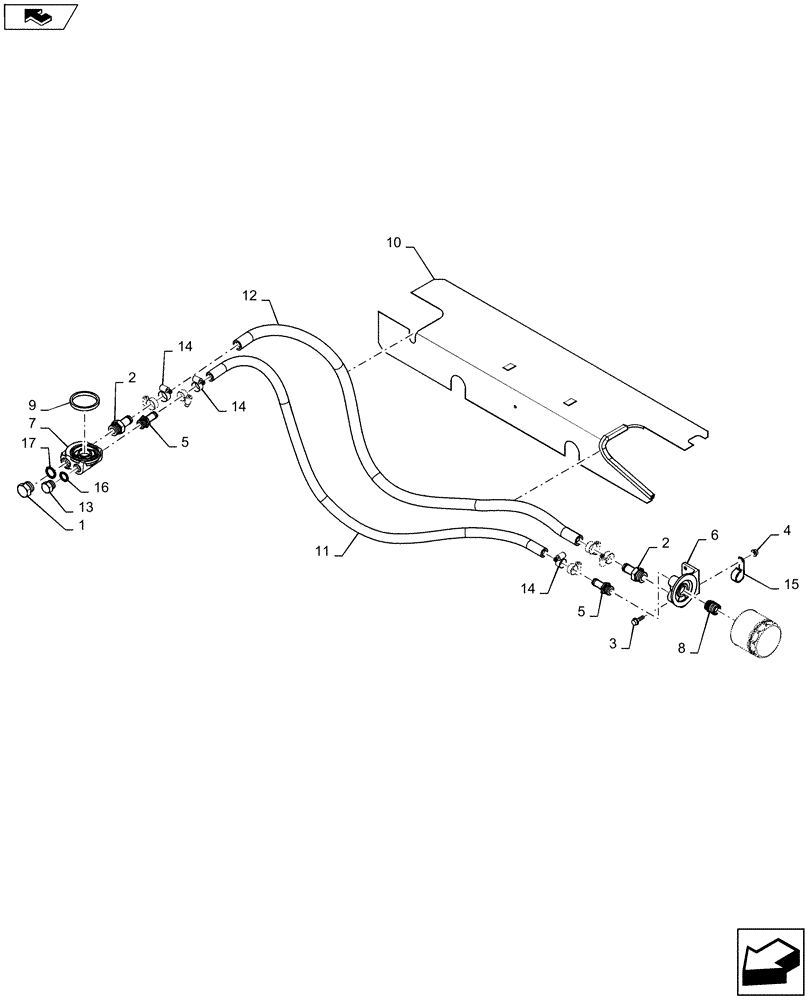

Схема запчастей Case TR320 - (10.304.AF) - ENGINE OIL FILTER, REMOTE (NEW STYLE) (10) - ENGINE
9
17
13
2
4
home
8
5
12
6
3
14
14
10
7
15
2
1
16
14
5
11

Артикул

Название

Примечание

Количество

1

163410

PLUG,1-1/16" - 12 ORB

1шт.

2

614661

FITTING,1-1/16" - 12 ORB x 3/4" Hose, Beaded

2шт.

3

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

5

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

2шт.

6

84296830

ADAPTER

Oil Filter

1шт.

7

84296854

ADAPTER

Remote Oil filter

1шт.

8

84297794

ADAPTER

Filter Head

1шт.

9

84303971

SEALING RING,62.5mm ID x 72mm OD x 8mm Thk

Oil Filter

1шт.

10

84554254

TRIM,30480mm L

210mm

1шт.

11

47637520

HOSE,15.90mm ID x 1400mm OAL, -10

1шт.

12

47637524

HOSE,19.10mm ID x 1400mm OAL, -12

1шт.

13

86512512

PLUG,7/8" - 14 ORB

1шт.

14

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

8шт.

15

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

17

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

Выбрано товаров: 17
