(10.304.AF[05]) - OIL DRAIN, REMOTE (ALL CASE) - AFTER DEC. 9, 2014

Запчасти Case TR320 (10.304.AF[05]) - OIL DRAIN, REMOTE (ALL CASE) - AFTER DEC. 9, 2014 (10) - ENGINE

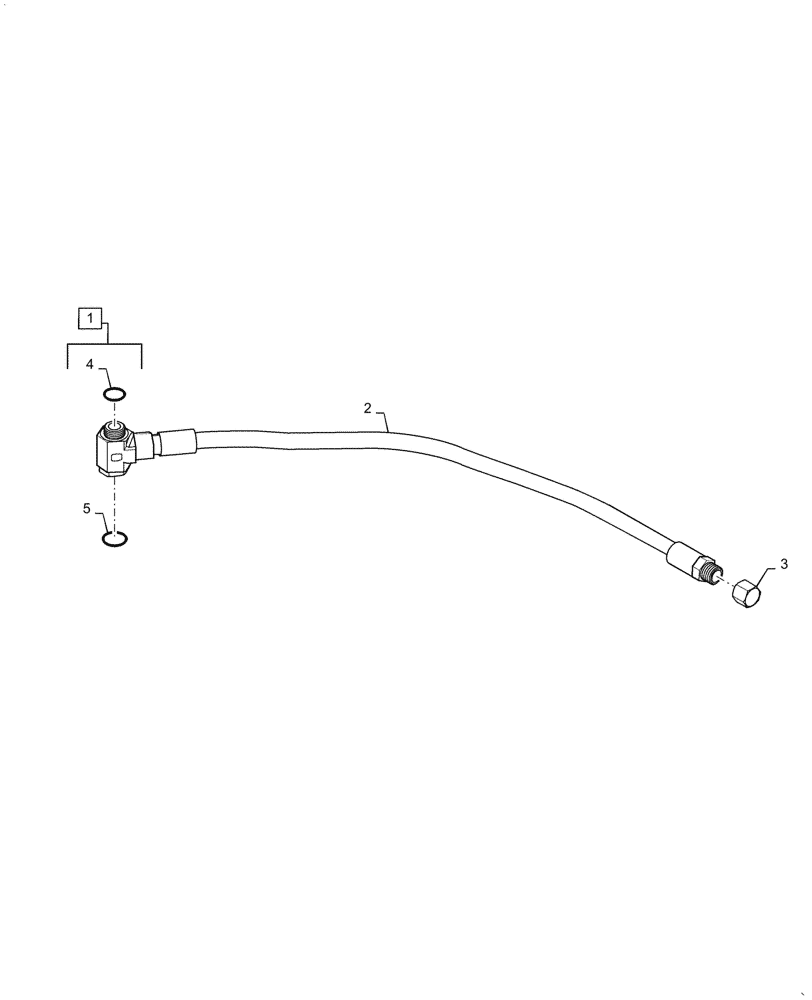

Схема запчастей Case TR320 - (10.304.AF[05]) - OIL DRAIN, REMOTE (ALL CASE) - AFTER DEC. 9, 2014 (10) - ENGINE
4
1
2
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47751176

REDUCER,3/8" - 18 NPTF x M22 x 1.5 ORB Male

Incl 6

1шт.

2

47782202

HOSE,12.5mm ID x 805mm L, SAE 100R17

1шт.

3

262159

CAP,3/4" - 16 Fem JIC

W/ 3/4" - 16, Male 37° Flare

1шт.

4

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

Drain

1шт.

5

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

Выбрано товаров: 5
