Запчасти Case TR320 (10.304.AF[03]) - OIL DRAIN, REMOTE (ALL CASE (10) - ENGINE

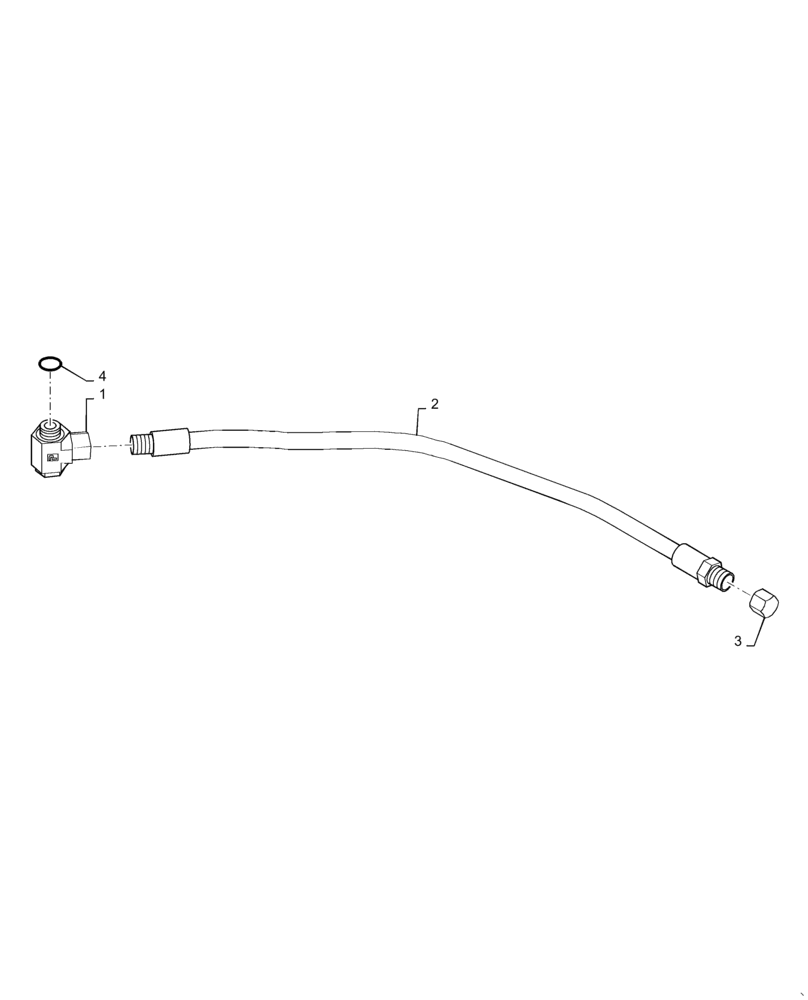

Схема запчастей Case TR320 - (10.304.AF[03]) - OIL DRAIN, REMOTE (ALL CASE (10) - ENGINE
1
3
2
4

Артикул

Название

Примечание

Количество

1

87742610

FITTING,M22 x 1.5

Oil Pan, Incl 4, Shown in Art, Years: -13-SEP-14

1шт.

1

5161351

90 ELBOW,Male, M22 x 1.5, ORB x 7/8"-14, 37 Degree Fl

Oil Pan, Incl 4, Changed Style at Rev. C, Start Year: 14-SEP-14

1шт.

2

84201423

HOSE,12.7mm ID x 825mm L, SAE 100R16

Remote Oil Drain

1шт.

3

262159

CAP,3/4" - 16 Fem JIC

1шт.

4

271913

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

1шт.

Выбрано товаров: 5
