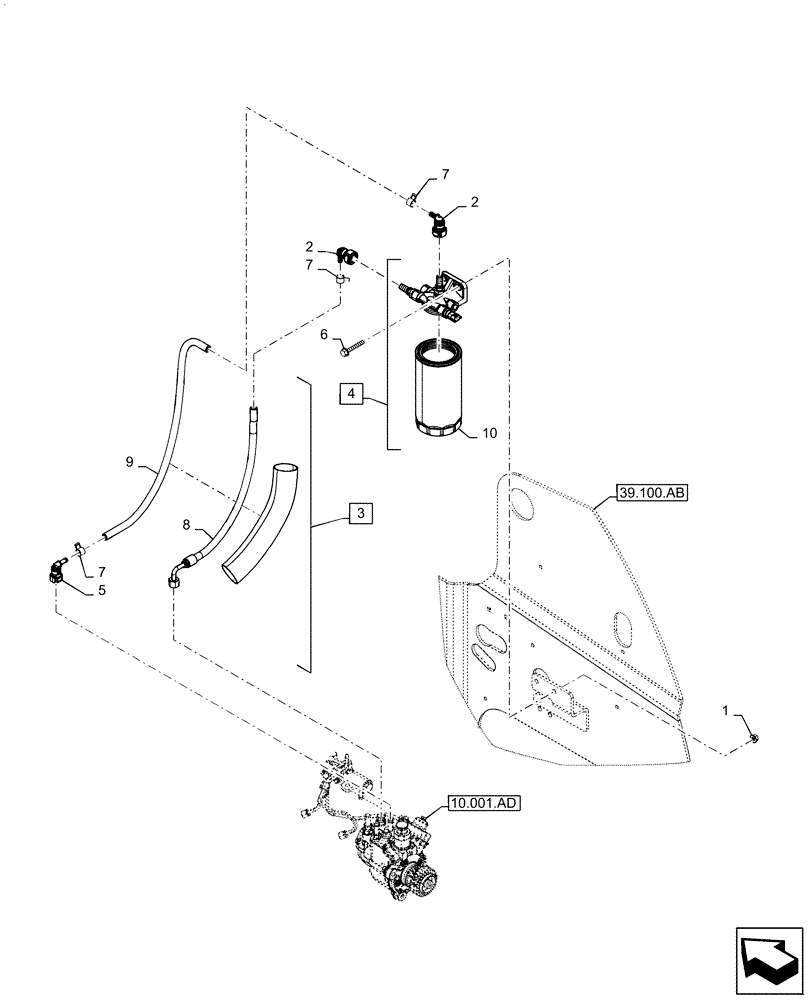

Запчасти Case TR320 (10.206.AG) - FUEL FILTER, ASSY (10) - ENGINE

1

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

2

47566816

FITTING,Fuel, 5/16" Hose Barb x 11.8mm J2044

2шт.

3

47805510

HOSE

Incl 8 - 9

1шт.

Replaces Old Style Rigid Tubes

1шт.

4

84525901

FUEL FILTER

Mounting Assy, Incl 10

1шт.

5

84553918

FITTING,90 Degree Quick Connect, 9.89mm Hose Bead

1шт.

6

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

7

87436932

CLAMP,13.9mm - 15.5mm, Spring

3шт.

8

47735686

FUEL HOSE,8mm ID x 490mm L, SAE 30R9

W/ 90° Fitting

1шт.

Replaces Old Style Rigid Tubes

1шт.

9

47704431

HOSE,7.94mm ID x 678mm L, SAE 30R9

1шт.

Replaces Old Style Rigid Tubes

1шт.

10

84534796

ELEMENT,Spin-on, M20 x 1.5, 96mm OD x 195mm L

Fuel Filter

1шт.
