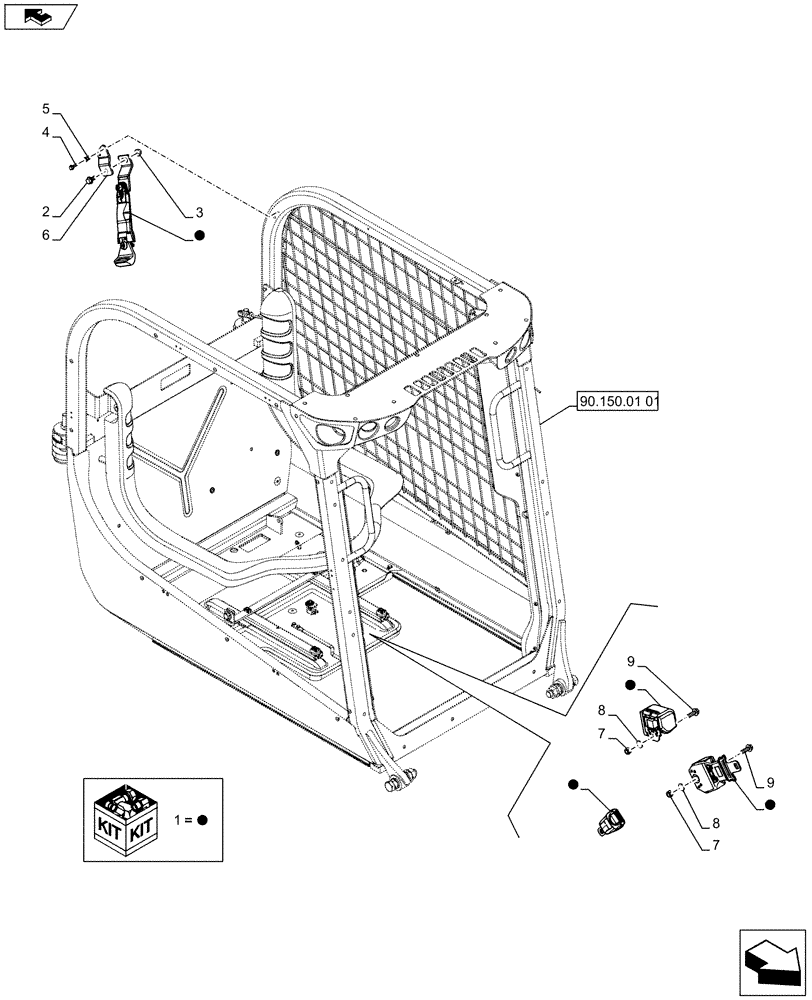

Запчасти Case TR320 (90.120.07[02]) - SEAT BELT, 3 POINT (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84354487

SEAT BELT

Case 3 Pt

1шт.

2

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

1шт.

3

86619802

FLANGE NUT,M10 x 1.5, Cl 8

1шт.

4

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

2шт.

5

87436247

THREADED INSERT

2шт.

6

84291791

BRACKET

Plate, C-Belt 3 Pt Retractable

1шт.

7

86512554

NUT,M10 x 1.5, Cl 10

2шт.

8

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

9

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.
