Запчасти Case TR320 (90.120.06[01]) - SEAT, AIR SUSPENSION (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

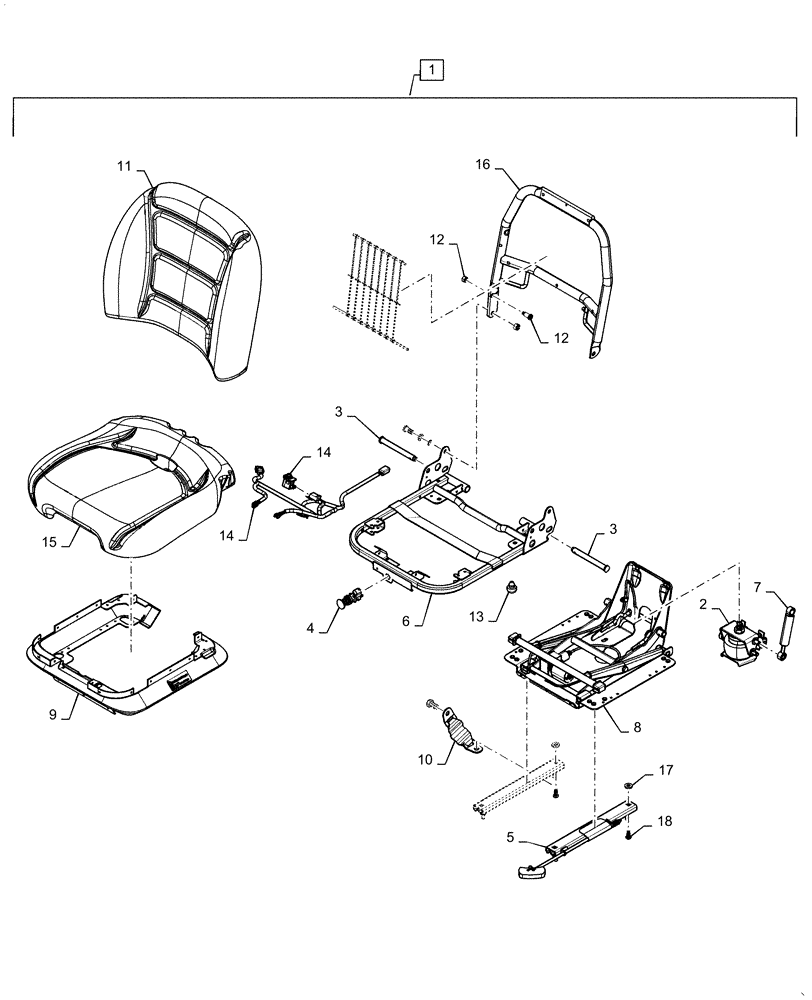

Схема запчастей Case TR320 - (90.120.06[01]) - SEAT, AIR SUSPENSION (ALL CASE) (90) - PLATFORM, CAB, BODYWORK AND DECALS
15
9
12
10
6
16
3
7
13
14
11
18
14
12
1
4
3
8
5
17
2

Артикул

Название

Примечание

Количество

1

84201374

SEAT

Seat, Operator, Air Suspension Case

1шт.

2

84559417

SERVICE KIT

Kit, Spring And Saddle, Service Part

1шт.

3

84559392

SERVICE KIT

Kit, Bearing, Service Part

1шт.

4

84518876

SERVICE KIT

Kit, Air Valve, Service Part

1шт.

5

84559416

SERVICE KIT

Kit, Adjustment Slides, Service Part

1шт.

6

84540792

SERVICE KIT

Kit, Seat Frame Weldment, Service Part

1шт.

7

84559410

SERVICE KIT

Kit, Shock Absorber, Service Part

1шт.

8

84540796

SERVICE KIT

Kit, Compressor, Service Part

1шт.

9

84559402

SERVICE KIT

Kit, Boot, Service Part

1шт.

10

84551065

SERVICE KIT

Kit, Tether, Service Part

1шт.

11

84559413

SERVICE KIT

Kit, Case Back Cushion Cloth, Service Pa

1шт.

12

47428271

SERVICE KIT

Kit, Pivot Bolt, Service Part

1шт.

13

84559404

SERVICE KIT

Kit, Bumper And Misc, Service Part

1шт.

14

84551068

SERVICE KIT

Kit, Seat Switch, Service Part

1шт.

15

84559400

SERVICE KIT

Kit, Case Seat Cushion Cloth, Service Pa

1шт.

16

84559409

SERVICE KIT

Kit, Back Frame, Service Part

1шт.

17

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

Washer

4шт.

18

86629544

NUT,5/16” – 18, GR B

Nut, Prev Torque, All Mtl Dir 5/16-18 Gr

4шт.

Выбрано товаров: 18
