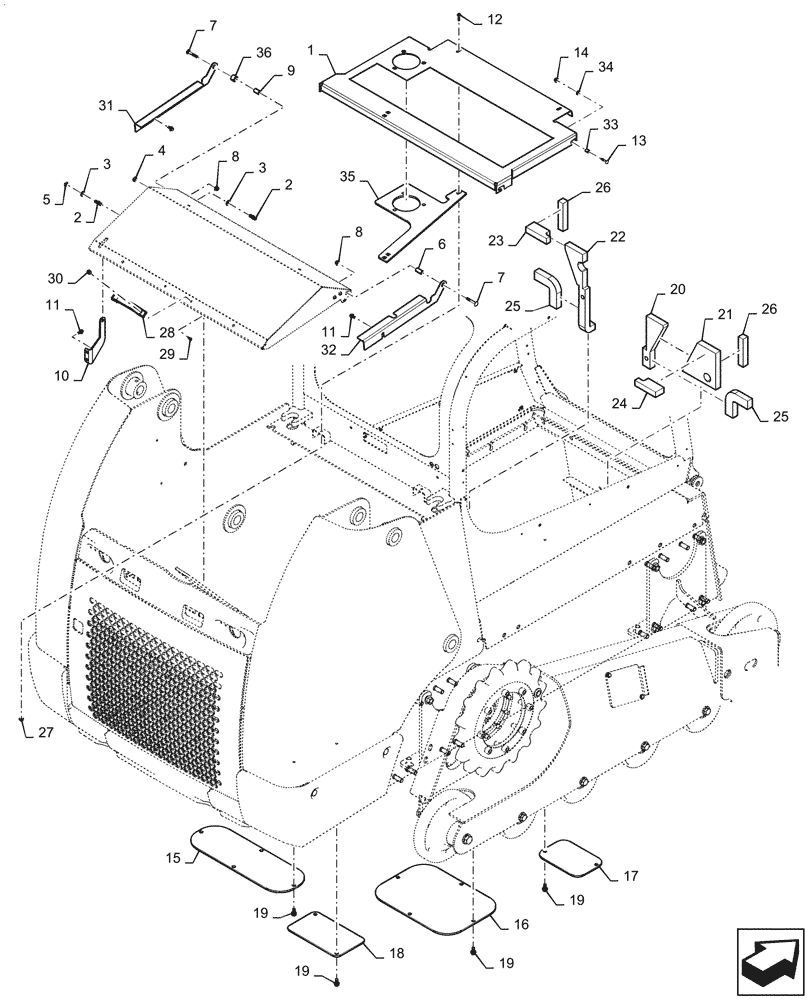

Запчасти Case TR320 (90.100.04) - REAR HOOD AND CHASSIS ACCESS COVERS 01-OCT-2016 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47492775

PANEL

Rear Deck Large, Gray

1шт.

2

47974869

BALL STUD,M8 x 1.25 x 32.2mm L, 10mm Ball OD

2шт.

3

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

4

43362

NUT,M8 x 1.25, Cl 10

1шт.

5

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

1шт.

6

47513620

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 28.58mm L

1шт.

7

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

8

86619801

FLANGE NUT,M8 x 1.25, Cl 8

2шт.

9

47513565

SPACER,Pipe, 9.25mm ID x 13.72mm OD x 23.81mm L

1шт.

10

47467486

ANGLE

Hood Lock Tab, CE Gray

1шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

4шт.

12

84305556

SCREW,Round HD, M6 x 1 x 25mm, Cl 10.9

2шт.

13

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

4шт.

14

86619800

FLANGE NUT,M6 x 1, Cl 8

4шт.

15

47717894

PLATE,524.6mm L x 174.6mm W x 6.35mm Thk

1шт.

16

47717914

PLATE,431.6mm L x 303.6mm W x 6.35mm Thk

1шт.

17

47717905

PLATE,225mm L x 150mm W x 6.35mm Thk

1шт.

18

47717909

PLATE,275mm L x 160mm W x 6.35mm Thk

1шт.

19

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

12шт.

20

84372629

FOAM INSULATION

RH Heel Plate

1шт.

21

84287773

FOAM INSULATION

RH Filler

1шт.

22

48013159

FOAM INSULATION

LH Heel Plate

1шт.

23

47875089

FOAM INSULATION

LH Upper Chassis Filler

1шт.

24

47875087

FOAM INSULATION

RH Upper Chassis Filler

1шт.

25

47874957

FOAM INSULATION,177.8mm L x 38.1mm W x 25.4mm Thk

Chassis Filler

2шт.

26

47870227

FOAM INSULATION,130mm L x 25.4mm W x 25.4mm Thk

Chassis Filler

2шт.

27

86511444

FLANGE NUT,Hex, M6 x 1

2шт.

28

406256A1

HANDLE

Rear Hood

1шт.

29

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

2шт.

30

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

2шт.

31

47555294

ANGLE

Hood Stop, Gray

1шт.

32

47543188

ANGLE

Hood Stop, Ce Gray

1шт.

33

47435764

SPACER,6.3mm ID x 9.5mm OD x 13mm L

4шт.

34

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

35

47435698

PLATE

Exhaust Stack Stiffener

1шт.

36

47513658

SPACER,13.87mm ID x 21.34mm OD x 15.88mm L

1шт.

37

87702286

TRIM,Bulk, 1/8" x 30480mm L

Cut to Length, 220mm L

1шт.
