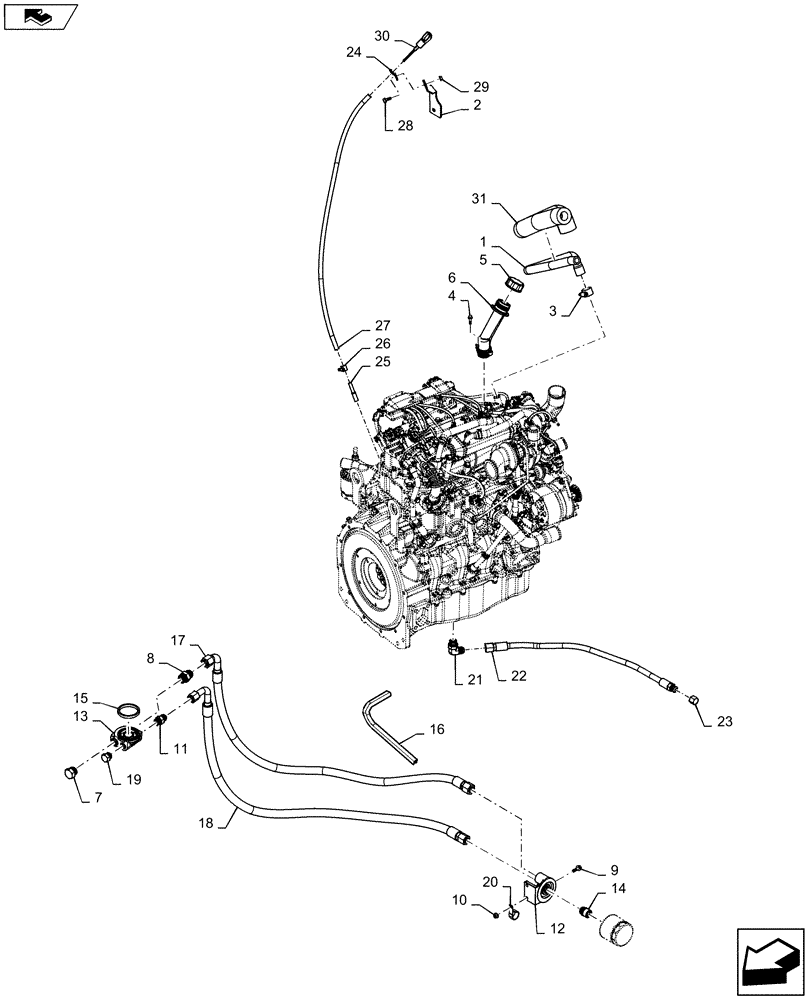

Запчасти Case TR320 (10.001.AK[01]) - ENGINE MOUNTING AND THROTTLE MOUNTING (ALL CASE) (10) - ENGINE

1

47384514

HOSE

CCV

1шт.

2

47390352

BRACKET

Dipstick Mount

1шт.

3

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

10шт.

4

87026500

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

5

87674802

CAP,7mm ID x 9mm OD x 12mm L

Engine Oil Fill

1шт.

6

87680042

NECK FILLER

Engine Oil

1шт.

7

163410

PLUG,1-1/16" - 12 ORB

1шт.

8

614661

FITTING,1-1/16" - 12 ORB x 3/4" Hose, Beaded

2шт.

9

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

10

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

11

217-175

FITTING,5/8" Hose Barb x 7/8" - 14 Male ORB

2шт.

12

84296830

ADAPTER

Remote Oil Filter

1шт.

13

84296854

ADAPTER

Remote Oil Filter, F5C Engine

1шт.

14

84297794

ADAPTER

Filter Head, F5C Engine

1шт.

15

84303971

SEALING RING,62.5mm ID x 72mm OD x 8mm Thk

Oil Filter

1шт.

16

84554254

TRIM,30480mm L

1шт.

17

47637520

HOSE,15.90mm ID x 1400mm OAL, -10

Remote Oil Filter

1шт.

18

47637524

HOSE,19.10mm ID x 1400mm OAL, -12

Remote Oil Filter

1шт.

19

86512512

PLUG,7/8" - 14 ORB

1шт.

20

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

1шт.

21

5161351

90 ELBOW,Male, M22 x 1.5, ORB x 7/8"-14, 37 Degree Fl

1шт.

22

84201423

HOSE,12.7mm ID x 825mm L, SAE 100R16

Remote Oil Drain

1шт.

23

262159

CAP,3/4" - 16 Fem JIC

Remote Oil Drain Hose

1шт.

24

84405628

BRACKET

Dipstick Tube

1шт.

25

87578147

ADAPTER

F5C Block To Dipstick Tube

1шт.

26

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

1шт.

27

87669375

TUBE,12.7mm OD x 944mm L

Dipstick Tube

1шт.

28

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

1шт.

29

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

30

84595663

DIPSTICK,1145.1mm L

1шт.

31

47497209

INSULATION,28mm ID x 562.5mm L

CCV Hose

1шт.
