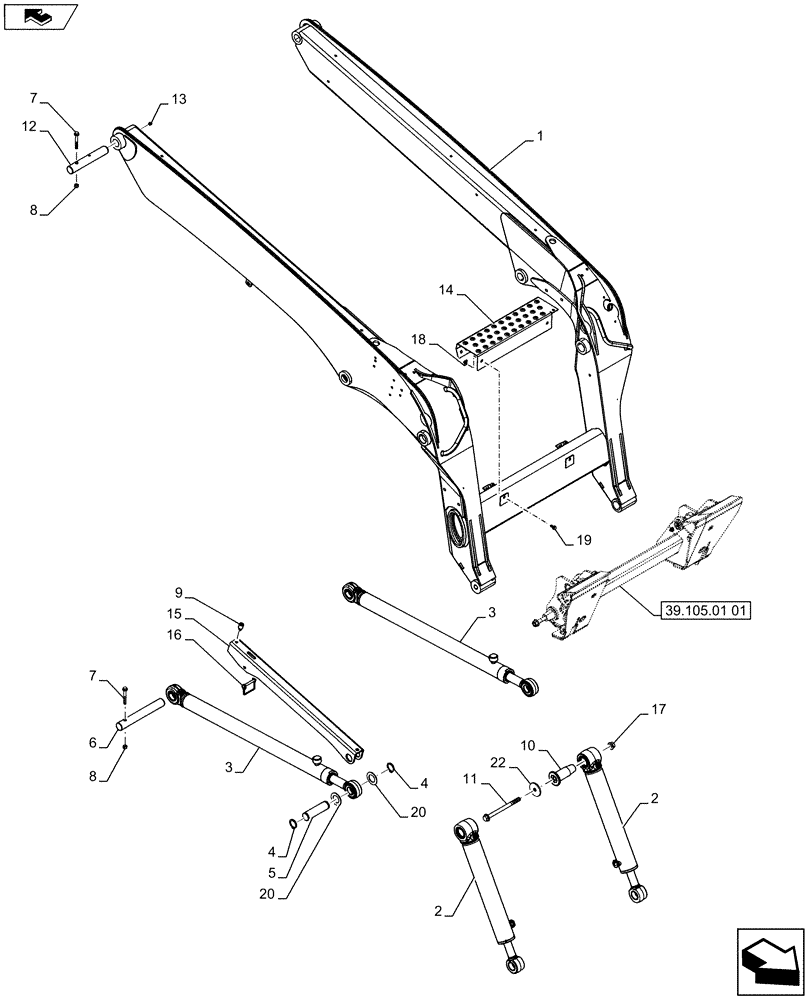

Запчасти Case TR320 (82.100.11) - LOADER ARM (TR320) (82) - FRONT LOADER & BUCKET

1

84391755

KIT

Kit

1шт.

2

47364444

HYDRAULIC CYLINDER,38.1mm Rod, 410mm Stroke

2шт.

3

47364858

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 817.9mm Stroke

Hyd. Lift

2шт.

4

86632531

SNAP RING,#150, Ext

Circlip, Ext. Hvy.

4шт.

5

84248603

PIN,38.15mm OD x 137.9mm L

Lift Cyl.

2шт.

6

84308025

PIN,38.15mm OD x 280mm L

Chassis to Lift Cyl.

2шт.

7

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

8

86512554

NUT,M10 x 1.5, Cl 10

4шт.

9

85802403

PLUG,13mm OD

Pad, Loader Prop

1шт.

10

84319704

PIN,50mm OD x 111mm L

Boom to Tip Cyl.

2шт.

10

47489943

PIN,44.45mm OD x 118.5mm L

Boom to Tip Cyl., Start Year: 31-JUL-13

2шт.

11

84238749

BOLT,Hex Flg, M16 x 210mm, Cl 10.9

2шт.

12

84341462

PIN,38.15mm OD x 233.5mm L

Boom to Chassis

2шт.

13

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

2шт.

14

84346854

STEP

Loader

1шт.

15

84255103

STRUT

Channel Safety Red

1шт.

16

84467349

PIN,9.53mm OD x 76.2mm L

Snapper

1шт.

17

87016581

FLANGE NUT,M16 x 2, CI 10

2шт.

18

86625074

SPRING NUT,Multi-Thd, M8 x 1.25

4шт.

19

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

86632586

WASHER,1.53" ID x 2.5" OD x 0.11" Thk

14шт.

21

429630A2

CAP COVER,43mm OD

Loader Arm, Upper Handle, 43mm (Not Shown)

2шт.

22

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

Base End of Tip Cyl, Not Illustrated, Start Year: 31-JUL-13

2шт.
