Запчасти Case TR320 (55.418.01) - WORKLIGHTS, HORN AND RELATED PARTS (SR250,TR320) (55) - ELECTRICAL SYSTEMS

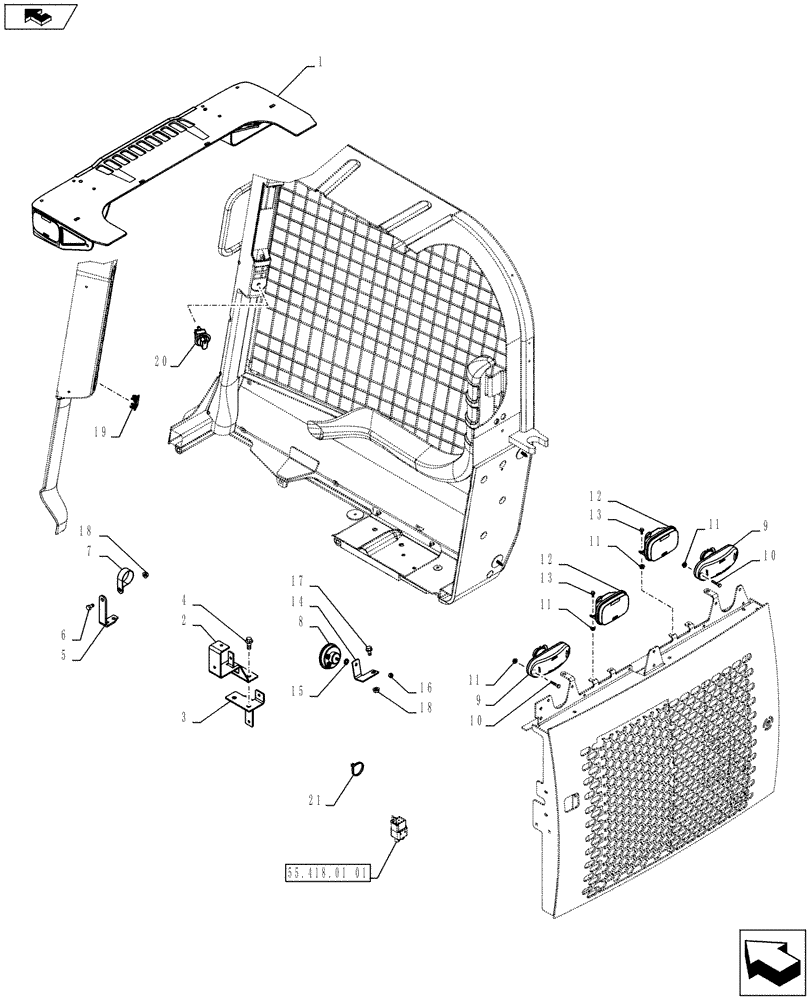

Схема запчастей Case TR320 - (55.418.01) - WORKLIGHTS, HORN AND RELATED PARTS (SR250,TR320) (55) - ELECTRICAL SYSTEMS
1
1
19
12
3
9
6
18
1
14
4
7
12
13
8
1
16
2
13
21
10
15
home
1
1
20
5
1
1
9
1
55.418.01 01
17
10
18

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Light Housings, Lamps - See Figure 55.418.02

1шт.

2

84296194

BRACKET, SUPPORTING

FCI Connector Support

1шт.

3

84296250

BRACKET, SUPPORTING

FCI Connector Support

1шт.

4

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

2шт.

5

84323563

ANGLE

1шт.

6

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

7

603022

CLAMP,44.4mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

8

87714969

HORN

W/Breather

1шт.

9

87627854

LIGHT ASSY.,12V, 27W, Red

Tail/Stop - Incandescent, Uses 87642985 Bulb

2шт.

10

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

4шт.

11

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

12

84306337

WORK LAMP,12V, 37.5W, Clear

37.5W, Uses 9847313 Bulb

2шт.

13

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

4шт.

14

84331854

BRACKET, SUPPORTING

1шт.

15

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

16

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

17

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

18

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

19

126844A1

PLUG,1.427” x .62” , Plastic

1шт.

20

84412290

DECAL

Light Switch Case

1шт.

21

L11541

CABLE TIE,203.2mm L, Nylon

10шт.

22

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

(Not Shown) Ref. 14 mounting

1шт.

23

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

(Not Shown) Ref. 14 mounting

1шт.

24

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

(Not Shown) Ref. 14 mounting

4шт.

25

86625264

LOCK WASHER,Ext Tooth, M5

(Not Shown) Ref. 12 mounting

4шт.

Выбрано товаров: 25
