Запчасти Case TR320 (55.101.AC[06]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB, W/ EHF (55) - ELECTRICAL SYSTEMS

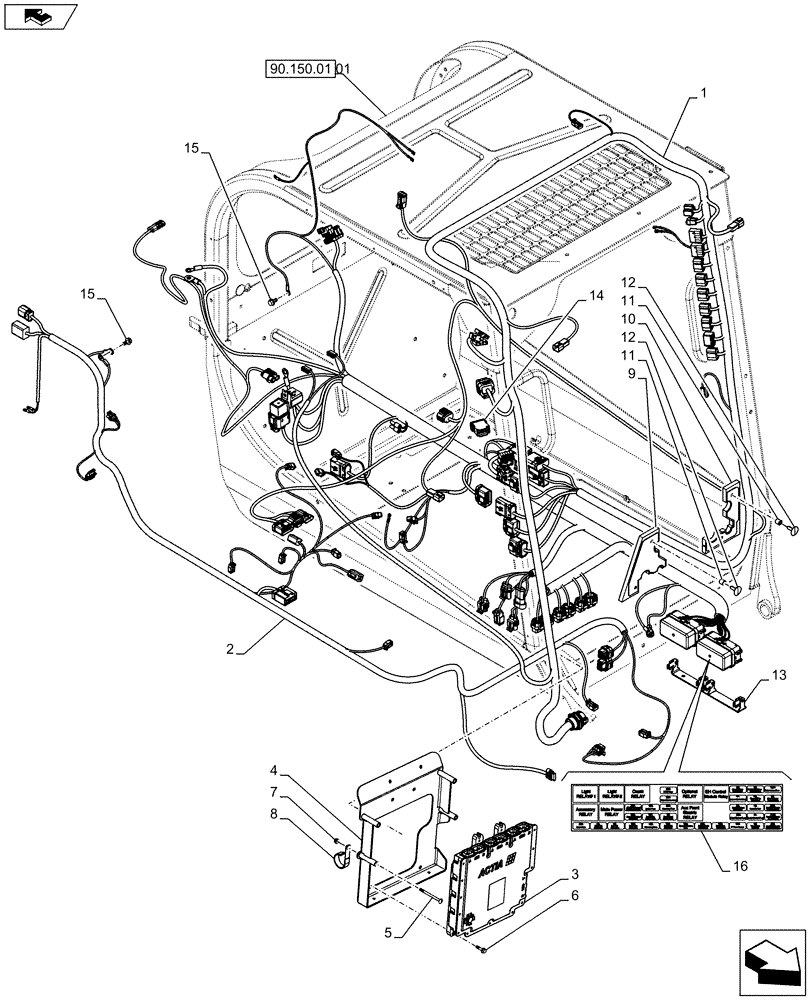

Схема запчастей Case TR320 - (55.101.AC[06]) - WIRE HARNESS & CONNECTOR, ELECTRONIC CONTROLS, OPEN CAB, W/ EHF (55) - ELECTRICAL SYSTEMS
12
90.150.01 01
16
7
2
11
10
6
11
3
9
5
14
home
1
15
15
4
13
8
12

Артикул

Название

Примечание

Количество

1

47377797

WIRE HARNESS

Open Cab, EH Controls, Years: -30-APR-13

1шт.

1

47385476

WIRE HARNESS

Open Cab, EH Controls, Years: 01-MAY-13-20-MAY-15

1шт.

1

47747233

WIRE HARNESS

Open Cab, EH Controls, Start Year: 21-MAY-15

1шт.

2

47357795

WIRE HARNESS

Chassis, EH Controls, Enhanced High Flow, Years: -30-APR-13

1шт.

2

47377806

WIRE HARNESS

Chassis, EH Controls, Enhanced High Flow, Years: 01-MAY-13-30-NOV-13

1шт.

2

47523456

WIRE HARNESS

Chassis, EH Controls, Enhanced High Flow, Years: 01-SEP-13-24-AUG-14

1шт.

2

47696871

WIRE HARNESS

Chassis, EH Controls, Enhanced High Flow, Years: 25-AUG-14-20-MAY-15

1шт.

2

47747251

WIRE HARNESS

Chassis, EH Controls, Enhanced High Flow, Start Year: 21-MAY-15

1шт.

3

84529539

ECU

UCM SSL

1шт.

3

84529539R

REMAN ELECT CONTROL

Reman For New P/N 84529539

1шт.

3

84529539C

CORE-ELECTRONIC CONT

Return Number

1шт.

4

84332287

BRACKET

ECM Black

1шт.

5

86512442

CARRIAGE BOLT,Sht Sq Nk, M6 x 80mm, Cl 8.8

Carriage 8.8 P M6 X 80

4шт.

6

9804257

FLANGE BOLT,Hex, M6 x 1.0 x 25mm, Cl 8.8, Full Thd

4шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

4шт.

8

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

38.1MM J Insul 5/16 Bolt

2шт.

9

84309937

SEAL

Assy LH

1шт.

10

84309938

SEAL

Assy LH

1шт.

11

87035448

SPACER,8.48mm ID x 12.7mm OD x 12.7mm L

4шт.

12

86620930

FASTENER,Push-In, 1.10" L, Nylon

4шт.

13

84422170

BRACKET, SUPPORTING

Double Fuse Box

1шт.

14

84251343

SWITCH

Rocker, Drive Pattern

1шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

4шт.

16

84380452

DECAL

Fuse Box Layout EH

1шт.

17

87313351

CLIP,25.4mm, Coat, 8.7mm Bolt Hole, J Type

Not Illustrated

1шт.

18

84420746

CABLE TIE,403.9mm L, Nylon

Not Illustrated

10шт.

19

84420768

FASTENER,Pine Tree, 5/8" x 20.01mm

Not Illustrated

10шт.

20

84392527

SWITCH

Rocker, Aux Electric On/Off, Side Post, Not Illustrated

1шт.

21

86503942

FUSE,3A, Micro

Chart Autofuse

1шт.

22

10395890

FUSE,5A, Mini, Beige

Mini 5 AMP

1шт.

23

87522597

FUSE,10A, Mini, Red

Mini 10 AMP

1шт.

24

87524877

FUSE,15A, Mini, Blue

Mini 15 AMP

1шт.

25

10401190

FUSE,20A, Mini, Yellow

Mini 20 AMP

1шт.

26

10401290

FUSE,25 amp Mini

Mini 30 AMP

1шт.

27

87472238

FUSE,60A, Blade

60 AMP

1шт.

28

87355337

RELAY,12V, 45A

A/C, 45A

1шт.

29

87655334

RELAY,12V, 35A, Micro

35A N.O. ISO280 Micro

8шт.

30

84074633

COVER

CAN Diagnostic Connector, EST, Not Illustrated

1шт.

31

87271930

NUT

CAN Diagnostic Connector, EST, Not Illustrated

1шт.

32

87516075

MULTIPOLE CONNECTOR,Male, 9 Pole

CAN Diagnostic Connector, EST, Not Illustrated

1шт.

33

47531996

BRACKET

Engine Relay Mounting, Not Illustrated

1шт.

Выбрано товаров: 41
