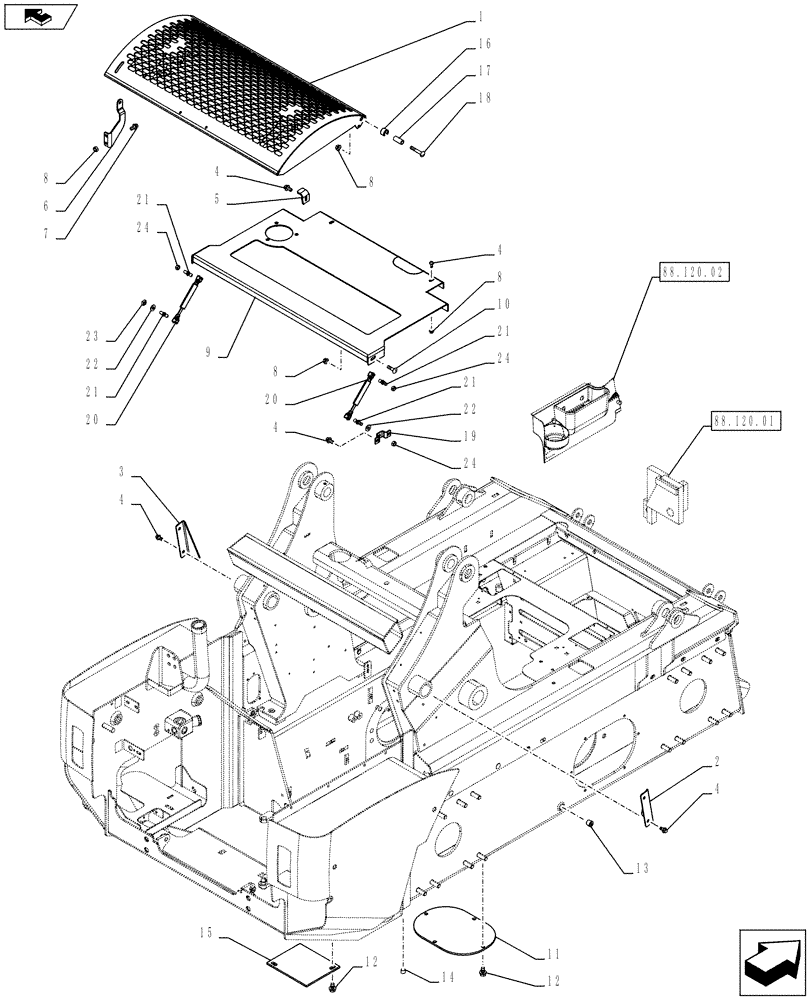

Запчасти Case TR320 (90.100.AU) - HOODS AND COVERS, TR320, BSN NCM440601 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84371087

HOOD

Tilt Gray

1шт.

2

84354590

COVER PLATE

1шт.

3

84354589

COVER PLATE

1шт.

4

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

M8 X 15

10шт.

5

84420534

STOP

Hood Stop

2шт.

6

84313073

LOCKING TAB

Angle, Hood Lock Tab Tan

1шт.

7

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

6шт.

9

84201350

PANEL

Panel, W Rear Deck Large Gray

1шт.

10

86512444

CARRIAGE BOLT,M8 x 1.25 x 40mm, Full Thd, Cl 8.8

2шт.

11

84299800

COVER PLATE

Gray

1шт.

12

87030529

SELF-TAP SCREW,HWH, 3/8" - 16 x 7/8"

6шт.

13

647429

DRAIN PLUG,Sq Soc HD, 1/2" - 14, NPTF

Pipe

2шт.

14

236622

PLUG,3/8" - 18 NPT

Pipe

2шт.

15

84299809

COVER PLATE

Plumbing Access Cover

1шт.

16

87429698

SPACER

Hood

2шт.

17

259905A1

SPACER

2шт.

18

120039

CARRIAGE BOLT,M8 x 1.25 x 54.8mm, Cl 8.8

2шт.

19

84356838

MOUNTING PLATE

1шт.

20

400473A1

CYLINDER ASSY.,186.84mm L, Extended, 148.74mm L, Compressed

Spring Cylinder...Hood Assist

2шт.

21

189609A1

BALL STUD,M8 x 1.25

4шт.

22

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

23

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

1шт.

24

43362

NUT,M8 x 1.25, Cl 10

3шт.

25

406256A1

HANDLE

Rear Hood (Not Shown)

1шт.

26

86511827

SCREW,Phillips Drive, Pan HD, M5 x 20mm, Cl 4.8

(Not Shown)

2шт.

27

86639241

NUT,Prev Torque, M5 x 0.8, Cl 8

(Not Shown)

2шт.

28

86625264

LOCK WASHER,Ext Tooth, M5

(Not Shown)

2шт.
