Запчасти Case TR320 (88.100.55[32]) - FUSE COVER, MED-LG CHASSIS (SR175-TV380) (88) - ACCESSORIES

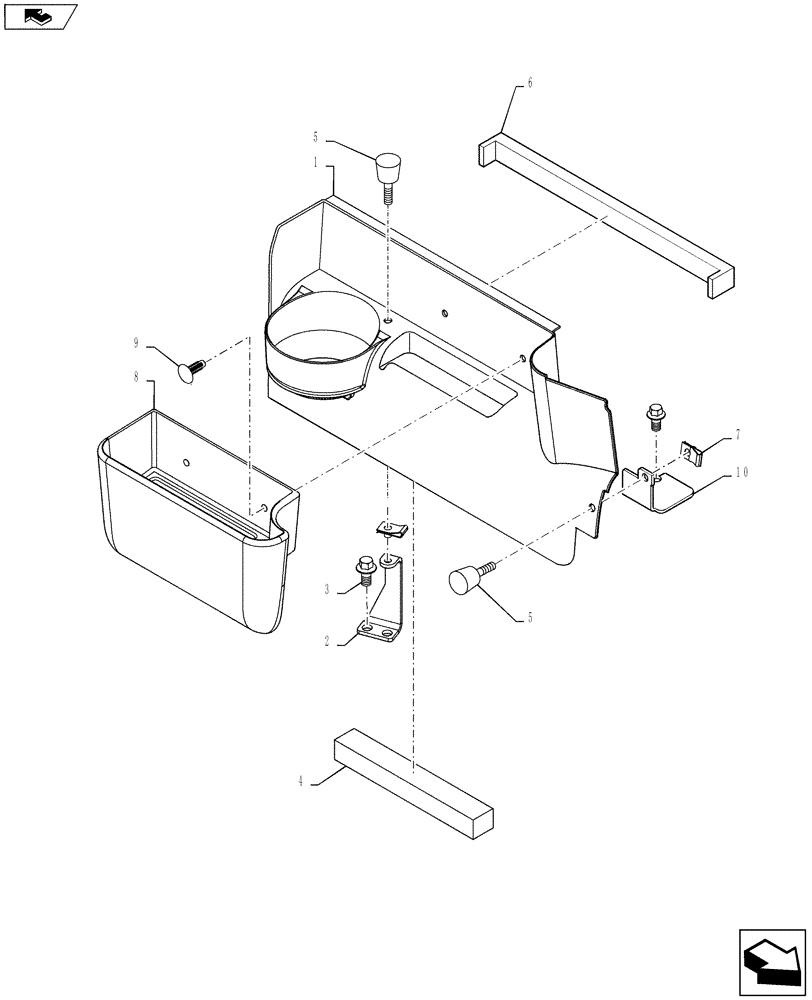

Схема запчастей Case TR320 - (88.100.55[32]) - FUSE COVER, MED-LG CHASSIS (SR175-TV380) (88) - ACCESSORIES
5
7
5
8
1
10
4
6
2
home
9
3

Артикул

Название

Примечание

Количество

1

84301222

ACCESS COVER

Fuse Cover, Incl Cup Holder

1шт.

2

84481035

BRACKET

Fuse Cover, Gray

1шт.

3

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

4

84282686

FOAM INSULATION

Fuse Cover

1шт.

5

273890

THUMB SCREW,#10 - 32 x 3/4"

Thumb Screw

2шт.

6

86508457

PAD

Foam Console, .97 ft.

1шт.

7

87301324

NUT,Spring, M5 x 0.8

2шт.

8

84362695

BASKET

1шт.

9

84318533

FASTENER

Push In, Wheat

2шт.

10

84379555

BRACKET

Fuse Cover

1шт.

Выбрано товаров: 10
