Запчасти Case TR320 (88.100.35[07]) - DIA KIT, HYDRAULIC COUPLER MED/LG RAD (SR175,SR200-SR250,TR270,TR320) (88) - ACCESSORIES

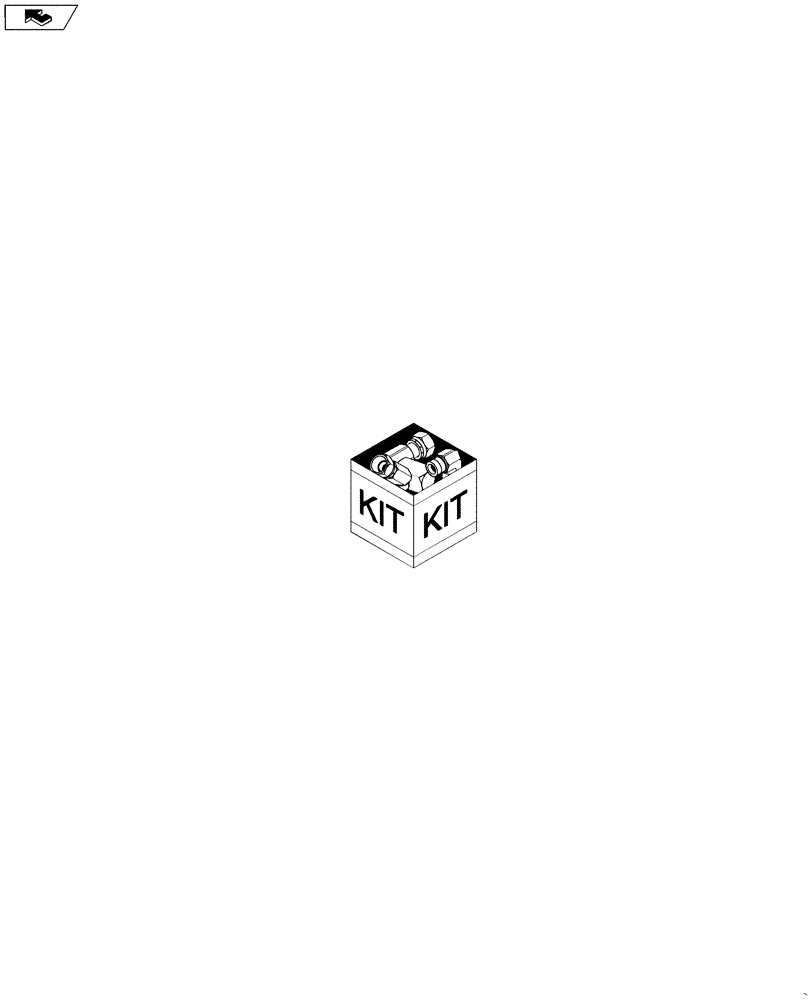

Схема запчастей Case TR320 - (88.100.35[07]) - DIA KIT, HYDRAULIC COUPLER MED/LG RAD (SR175,SR200-SR250,TR270,TR320) (88) - ACCESSORIES
home

Артикул

Название

Примечание

Количество

84392554

KIT

DIA Kit, Hydraulic Coupler, MED/LG RAD, Incl. 1-54

1шт.

1

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

2

605025

CLAMP,3/8", Coated, 3/8" Bolt

2шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

1шт.

4

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

1шт.

5

84254052

HOSE CLAMP,19.1mm W x 31.9mm L

Tube

1шт.

6

84254056

HOSE CLAMP,69.2mm L

Butterfly Tube

2шт.

7

84338470

HYD TUBE

Assembly, Hydraulic Coupler

1шт.

8

84338472

HYD TUBE

Assembly, Hydraulic Coupler

1шт.

9

84351545

HYD TUBE

Assembly, Serial Range: Step-Coupler

1шт.

10

84351547

HYD TUBE

Assembly, Serial Range: Step-Coupler

1шт.

11

87342191

SPACER,9.25mm ID x 13.72mm OD x 9.53mm L

Spacer

1шт.

12

139398

HYD CONNECTOR,9/16" - 18 ORB x 7/16" - 20 JIC

4шт.

13

163335

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

1шт.

14

265235

HYD CONNECTOR,7/16" - 20 ORB x 7/16" - 20 JIC

2шт.

15

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

16

9671714

FLANGE BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

17

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

18

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

19

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

2шт.

20

9804278

FLANGE NUT,M10 x 1.5, Cl 8

2шт.

21

9850685

BOLT,Hex, M6 - 1 x 90mm, Cl 8.8

2шт.

22

84387739

ROD

Hydraulic Coupler, Position Indicator

2шт.

23

84339845

STEP

Hydraulic Coupler, Power Tan

1шт.

24

84345496

HOSE,6.35mm ID x 368mm L, SAE 100R16

Coupler Cylinder

2шт.

25

84345506

HOSE,6.35mm ID x 409mm L, SAE 100R17

Coupler Cylinder

1шт.

26

84345532

HOSE,6.35mm ID x 379mm L, SAE 100R17

Coupler Cylinder

1шт.

27

86512993

ELBOW,45 Degree, 7/16" - 20 JIC x 7/16" - 20 ORB

2шт.

28

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

29

87442337

CYLINDER,Double Acting, 19.05mm Rod, 48mm Stroke

Hydraulic Coupler

2шт.

30

294741A1

CHECK VALVE

1шт.

31

84339847

STEP

Hydraulic Coupler, Gray

1шт.

32

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

1шт.

33

604896

CLAMP,Dual, 3/8" Hose, 6mm Bolt

1шт.

34

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

1шт.

35

84259529

HYD TUBE

Assembly, Hydraulic Coupler

1шт.

36

84259531

HYD TUBE

Assembly, Hydraulic Coupler

1шт.

37

84277054

BRACKET, SUPPORTING

PA, Hydraulic Tube

2шт.

38

84292314

HOSE,12.7mm ID x 460mm L

Hydraulic Coupler, Drain

1шт.

39

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

1шт.

40

84201227

HOSE,12.7mm ID x 615mm L

Hydraulic Coupler, Drain

1шт.

41

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

2шт.

42

84251346

SWITCH

Rocker, Hydraulic Coupler

1шт.

43

84256406

HYDRAULIC VALVE

Coupler

1шт.

44

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

Assembly, Option

1шт.

45

84291016

RIGID TUBE

Assembly, Hydraulic Coupler

1шт.

46

86511481

FLANGE BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

47

86624011

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.

48

86705988

FITTING,1/2" Hose Bead x 9/16" - 18 ORB

1шт.

49

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

37FL X ORB 8-6 Elbow

1шт.

50

87301490

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, J Type

J, 12.7mm

1шт.

51

87443510

HOSE CLAMP,18.4mm Static ID x 15mm W

3шт.

52

87622774

TEE,-12, Male 37 Degree Fl, 1 1/16"-12, Adj Str Thd OR, Br

Hydraulic Tee

1шт.

53

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

Square

2шт.

54

84392557

INSTRUCTION

Sheet, Hydraulic Coupler, RAD

1шт.

Выбрано товаров: 55
