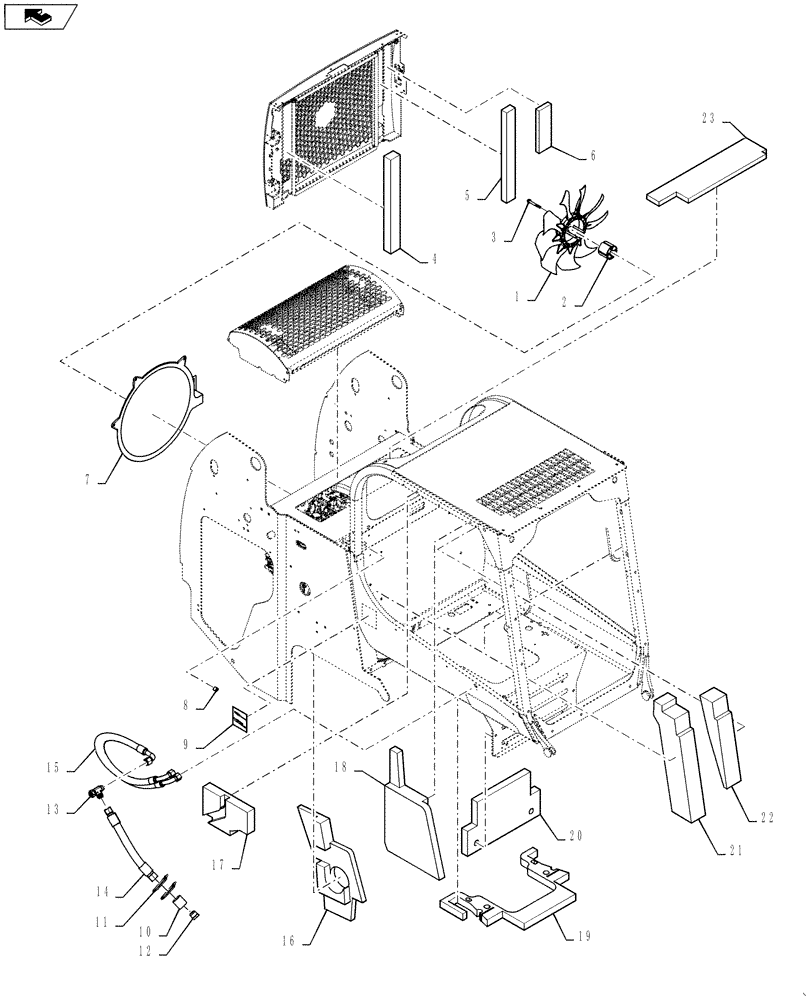

Запчасти Case TR320 (88.100.10[20]) - ENGINE ACCESSORIES EU W/SOUND (TR320) (88) - ACCESSORIES

1

47488898

FAN,9 Blades, 480mm OD

Clockwise Pusher 480 (NA)

1шт.

2

87565746

SPACER

Chart, Fan

1шт.

3

86507311

BOLT,Hex, M10 x 80mm, Cl 8.8

4шт.

4

84372988

FOAM INSULATION,584.4mm L x 67.5mm W x 50.8mm Thk

Fan, RH

1шт.

5

84372981

FOAM INSULATION

Fan

1шт.

6

84372973

FOAM INSULATION,264.4mm L x 87.2mm W x 25.4mm Thk

Fan, LH

1шт.

7

84383957

SHROUD

Metal Insert, Gray

1шт.

8

87461957

STOP

Throttle

1шт.

9

87611184

DECAL,LWA 103, 100mm x 110mm

LWA 103

1шт.

10

87595771

ISOLATOR,200mm L x 50mm W x 3.2mm Thk

Rubber

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

12

9790527

PLUG,1-5/16" - 12 JIC

1шт.

13

265978

TEE,1-1/16" - 12 JIC x 1-1/16" - 12 JIC x 1-1/16" - 12 JIC

1шт.

14

87351645

HOSE ASSY.,417mm L

Resonator

1шт.

15

84383953

HOSE ASSY.

Valve Supply

1шт.

16

84366337

FOAM INSULATION

Right Tower, Rear

1шт.

17

84366341

FOAM INSULATION

Left Tower, Rear

1шт.

18

84366339

FOAM INSULATION

Left Tower, Mid

1шт.

19

84366352

FOAM INSULATION

Heal Plate, Vertical

1шт.

20

84366353

FOAM INSULATION

Heal Plate, Horizontal

1шт.

21

84366336

FOAM INSULATION

Right Tower, Front

1шт.

22

84366338

FOAM INSULATION

Left Tower, Front, Years: -13-JUL-15

1шт.

22

47886440

INSULATION

Left Tower, Front, Start Year: 14-JUL-15

1шт.

23

84373796

FOAM INSULATION

Hood

1шт.
