Запчасти Case TR320 (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504181441) (10) - ENGINE

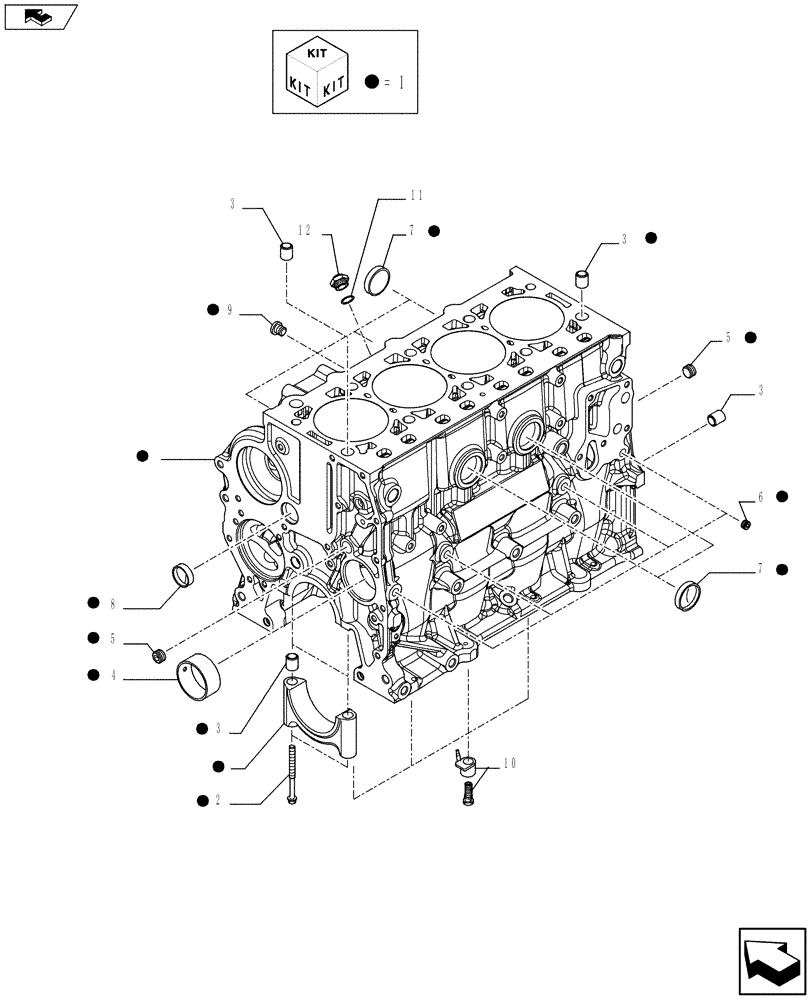

Схема запчастей Case TR320 - (10.001.02) - CYLINDER BLOCK & RELATED PARTS (504181441) (10) - ENGINE
8
5
1
1
home
4
1
1
1
11
12
1
3
1
6
1
1
10
9
1
2
1
7
1
1
3
5
1
3
7
3
1

Артикул

Название

Примечание

Количество

1

504189766

CYLINDER BLOCK,4 Cylinders

- ASSY

1шт.

2

4891353

SCREW,Flg Hd, M12 x 1.5 x 120

10шт.

3

7300019

DOWEL,0.75mm Thk

14шт.

4

4895040

BUSHING,54.39mm ID x 59.39mm OD x 25.4mm L

5шт.

5

504051238

PLUG,Threaded, 3/8" Dia

D. 3/8"

3шт.

6

504051236

PLUG,Threaded, 1/8"

D. 1/8"

4шт.

7

16989101

PLUG,Lock, M40

6шт.

8

16988701

PLUG,Lock, M30

D. 30 mm

1шт.

9

504016052

PLUG,M14 x 1.5

M14X1,5

1шт.

10

504156515

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

4шт.

11

504077652

SEALING WASHER,13mm ID x 19mm OD

1шт.

Выбрано товаров: 11
