Запчасти Case TR320 (82.300.AN[05]) - BUCKETS - LOADER, MANURE / SLURRY (82) - FRONT LOADER & BUCKET

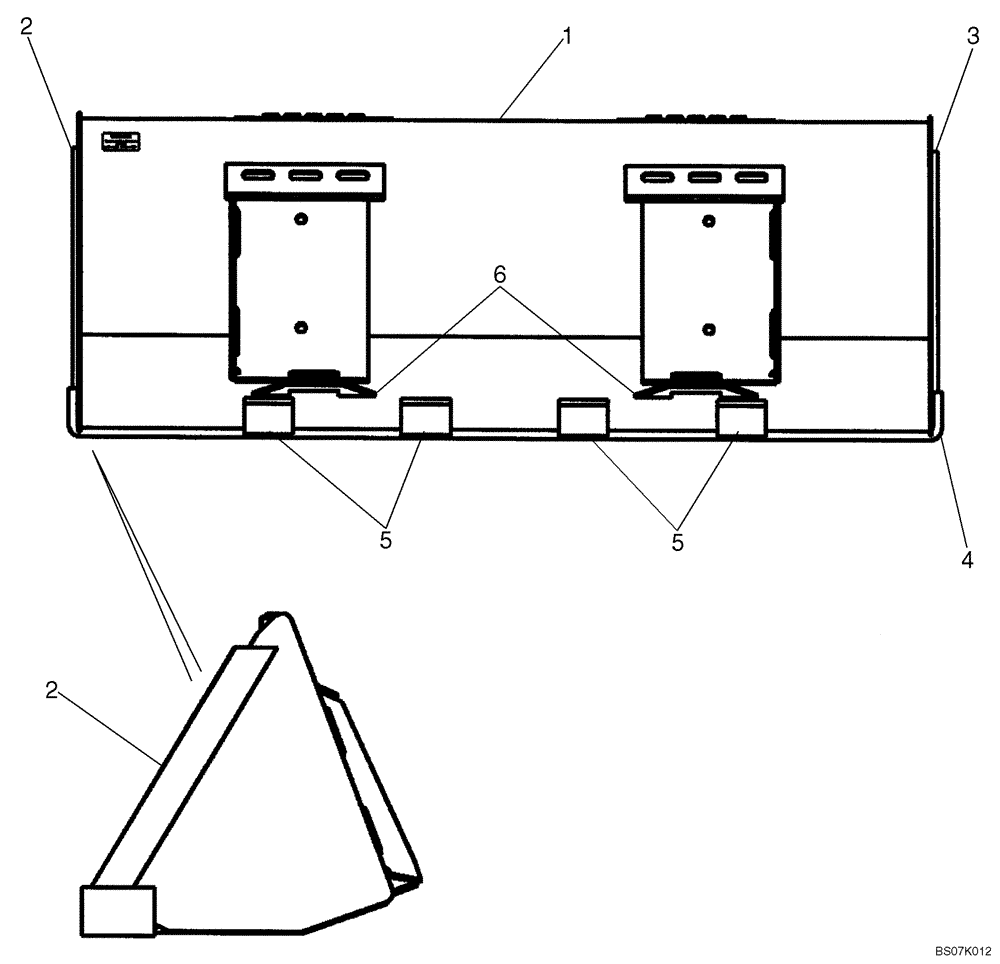

Схема запчастей Case TR320 - (82.300.AN[05]) - BUCKETS - LOADER, MANURE / SLURRY (82) - FRONT LOADER & BUCKET
5
1
4
2
3
5
6
2

Артикул

Название

Примечание

Количество

1

84304961

BUCKET

Manure/Slurry; 60 Inch Tan; Order from Whole Goods; Incl. 84304978, 2 - 6

1шт.

84304978

DECAL

1шт.

2

86501789

CUTTING EDGE

Cutting Edge, LH

1шт.

3

86501789

CUTTING EDGE

Cutting Edge, RH

1шт.

4

86577164

CUTTING EDGE

Weld On Blade, 60 Inch

1шт.

5

86501838

BAR

Skid Bar

3шт.

6

9822175

PLATE

LH & RH

2шт.

1a

84304965

BUCKET

Manure/Slurry; 72 Inch Tan; Order from Whole Goods; Incl. 84304982, 2A - 6A

1шт.

84304982

DECAL

1шт.

2a

86501789

CUTTING EDGE

Cutting Edge, LH

1шт.

3a

86501789

CUTTING EDGE

Cutting Edge, RH

1шт.

4a

86577168

CUTTING EDGE,Weld On, 7 Hole, 152.4mm W x 1825.8mm L

Weld On Blade, 72 Inch

1шт.

5a

86501816

BAR

Skid Bar

4шт.

6a

9822175

PLATE

LH & RH

2шт.

1b

84304969

BUCKET

Manure/Slurry; 84 Inch Tan; Order from Whole Goods; Incl. 84304986, 2B - 6B

1шт.

84304986

DECAL

1шт.

2b

86501789

CUTTING EDGE

Cutting Edge, LH

1шт.

3b

86501789

CUTTING EDGE

Cutting Edge, RH

1шт.

4b

86900574

CUTTING EDGE

Weld On Blade, 84 Inch

1шт.

5b

86501816

BAR

Skid Bar

5шт.

6b

9822175

PLATE

LH & RH

2шт.

Выбрано товаров: 21
