Запчасти Case TR320 (55.408.AG[01]) - WORKLIGHTS, HORN AND RELATED PARTS (SR175,SR200,SR220,SR250,TR270,TR320) (55) - ELECTRICAL SYSTEMS

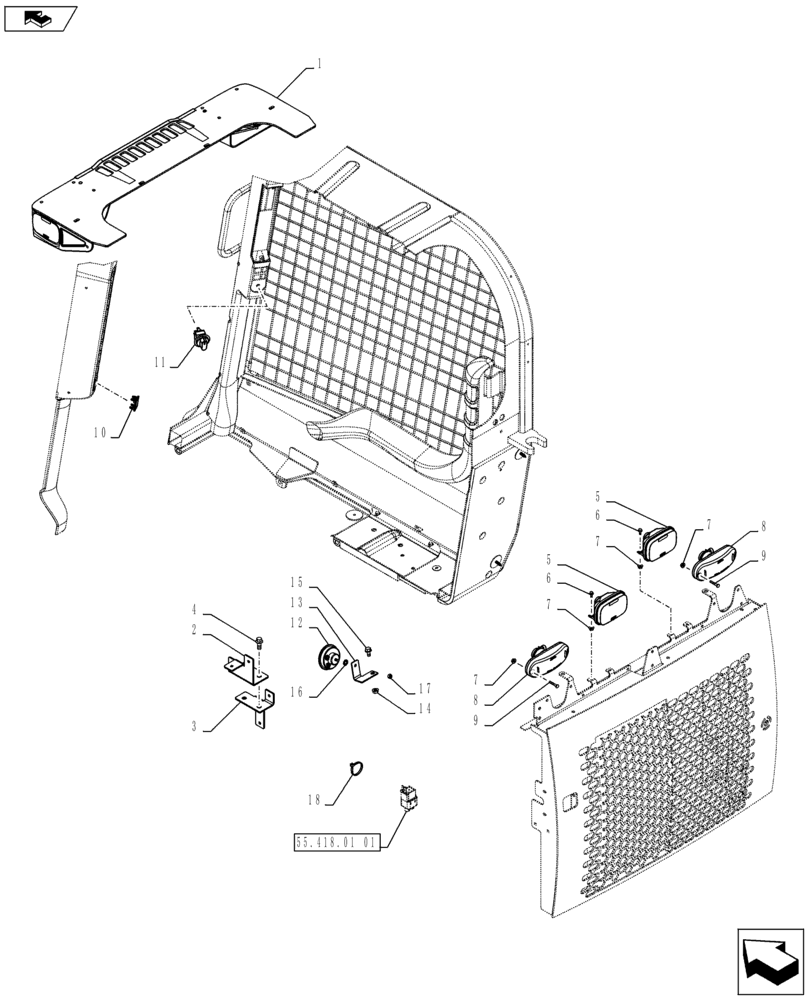

Схема запчастей Case TR320 - (55.408.AG[01]) - WORKLIGHTS, HORN AND RELATED PARTS (SR175,SR200,SR220,SR250,TR270,TR320) (55) - ELECTRICAL SYSTEMS
17
11
9
7
18
16
8
14
55.418.01 01
2
home
6
6
5
7
12
9
1
8
7
3
15
10
7
4
13
5
11

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

See 55.418.02

1шт.

2

84333370

BRACKET, SUPPORTING

FCI Connector Support

1шт.

3

84333371

BRACKET

FCI Connector Support

1шт.

4

87550233

SELF-TAP SCREW,Hex Flg, M10 x 1.5 x 25mm

SEALING PROFILE, 0.98 METER

2шт.

5

84306337

WORK LAMP,12V, 37.5W, Clear

37.5W

2шт.

5a

9847313

BULB,#894, 12V, 37.5W

1шт.

6

86511838

BOLT,Hvy Hex, M5 x 12mm, Cl 8.8, Full Thd

HEXAGON NUT

4шт.

7

86512495

FLANGE NUT,Hex, M5, Cl 8

HEXAGON BOLT

8шт.

8

87627854

LIGHT ASSY.,12V, 27W, Red

Tail, Stop

2шт.

9

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

FLANGE

4шт.

10

126844A1

PLUG,1.427” x .62” , Plastic

Switch Hole Cover

2шт.

11

84412290

DECAL

Light Switch, Wheat

3шт.

12

87714969

HORN

W/ Breather

1шт.

13

84331854

BRACKET, SUPPORTING

Horn Mounting

4шт.

14

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

OIL FILTER

1шт.

15

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

HEXAGON BOLT

1шт.

16

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

PIPE, 0.02 METER

1шт.

17

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

LOCK WASHER

6шт.

18

L11541

CABLE TIE,203.2mm L, Nylon

Strap

1шт.

19

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

INTAKE AIR HOSE, 82.00 mm ID, 101.00 mm ID x 220.00 mm

4шт.

20

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

BONNET

4шт.

21

86625264

LOCK WASHER,Ext Tooth, M5

HEXAGON BOLT

1шт.

22

84469870

BRACKET

Chassis Harness

1шт.

23

L18331

CABLE TIE,375.9mm L, Nylon, Black

Strap

1шт.

Выбрано товаров: 24
