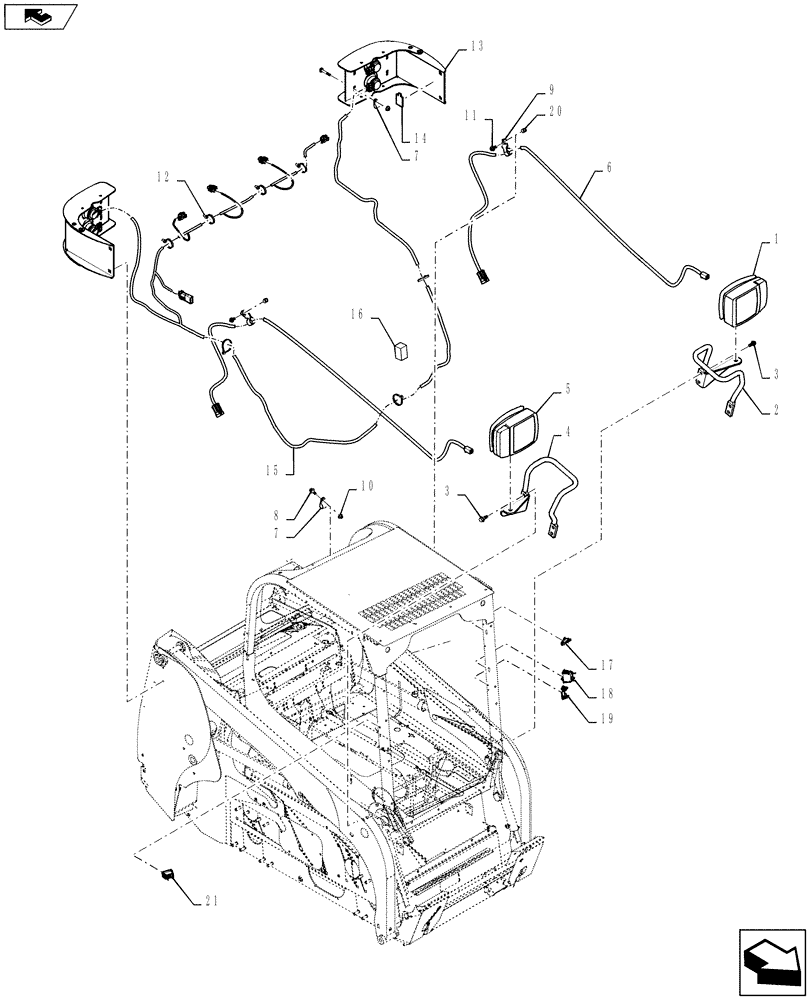

Запчасти Case TR320 (55.404.CY[01]) - EU ROAD LIGHTS LG (SR220,SR250,TR320) (55) - ELECTRICAL SYSTEMS

1

87572860

LAMP

EU Boom, Left Lamp, Incl. Ref. 22 & 23

1шт.

2

84306583

BRACKET

Light, LH, Tan

1шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

84306585

BRACKET

Light, RH, Tan

1шт.

5

87572859

LAMP

EU Boom, Right Lamp, Incl. Ref. 22 & 23

1шт.

6

84262451

WIRE HARNESS

FE Boom RD

2шт.

7

86625035

CLAMP,12.7mm, Coat, 7.1mm Bolt Hole, P Type

8шт.

8

9804255

BOLT,Hex, M6 x 1 x 16mm, Full Thd, Cl 8.8

6шт.

9

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

2шт.

10

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

6шт.

11

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

2шт.

12

87668737

CABLE TIE,203.2mm L, Nylon, Black

W/Push-in Fastener

4шт.

13

84384439

REVERSING LAMP ASSY

Work, Case Radial

1шт.

14

84416164

FOAM INSULATION

Upper Chassis Short

2шт.

15

84262455

WIRE HARNESS

Rear, Road Jumper

1шт.

16

9821783

FLASHER UNIT

Assembly

1шт.

17

86604657

INDICATOR, TURN SIGN

1шт.

18

87634133

SWITCH

Rocker, Hazard Lights

1шт.

19

84263153

SWITCH

Rocker, Loader Lockout

1шт.

20

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

2шт.

21

131691A1

ROCKER SWITCH

Rocker, Front and Rear Coupler

1шт.

22

139119A1

BULB,#886, 12V, 50W

Head Lamp (Not Shown)

2шт.

23

87642985

BULB,3157, 12V, 26.5W, Clear

Turn Signal (Not Shown)

2шт.
