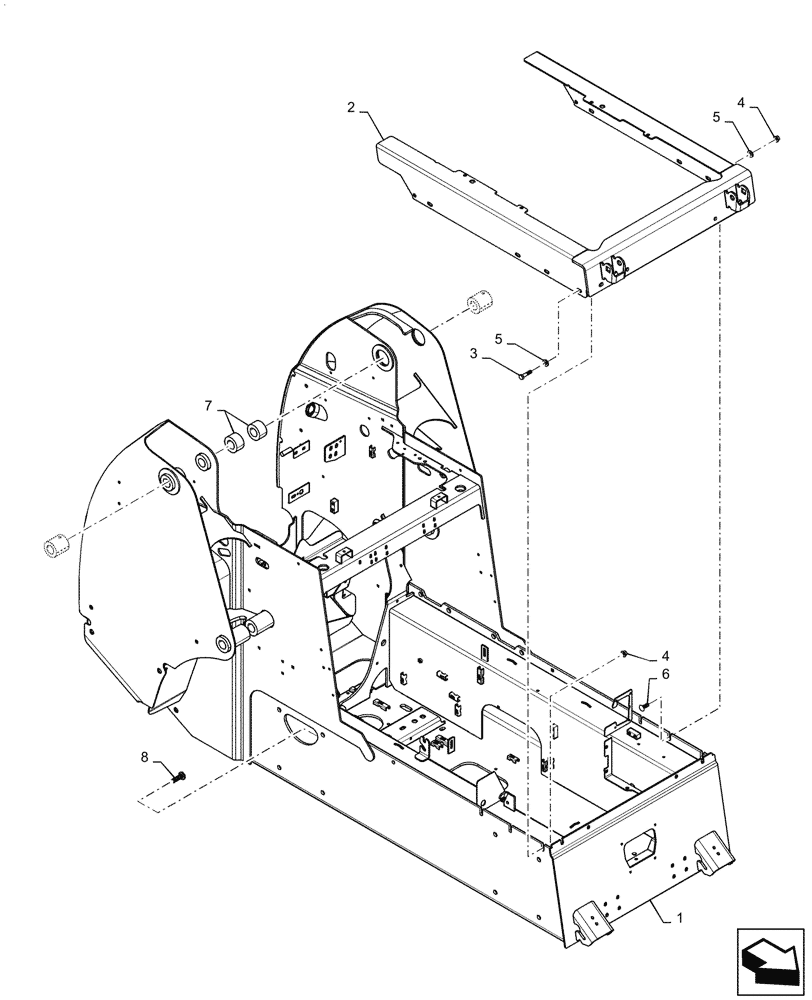

Запчасти Case TR320 (39.100.AB[01]) - CHASSIS (TR320) (39) - FRAMES AND BALLASTING

1

NS

NOT SERVICED

Lower Frame, Tan

1шт.

2

84309634

DRAWBAR FRAME

Upper, Gray

1шт.

3

337563

BOLT,M12 x 1.75 x 47.68mm, Cl 10.9

11шт.

4

86512497

FLANGE NUT,M12 x 1.75, Cl 10

12шт.

5

86625256

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

12шт.

6

87035385

CARRIAGE BOLT,Sht Sq Nk, M12 x 35mm, Cl 8.8, Full Thd

1шт.

7

84201040

HUB

Upper frame to H-Link

2шт.

8

84162937

STUD,M16 x 50mm, Cl 9.8

Axle Mount

16шт.
