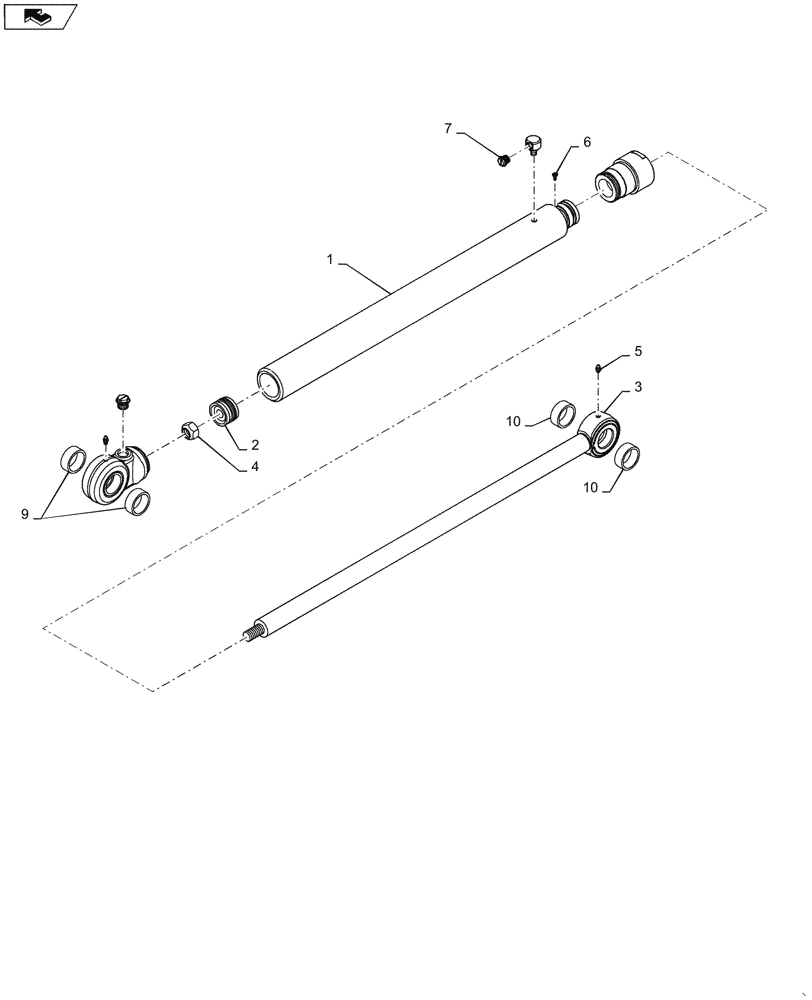

Запчасти Case TR320 (35.701.CB[02]) - HYDRAULIC LIFT CYLINDER, ASN NCM440429 (TR320) (35) - HYDRAULIC SYSTEMS

84575712

HYDRAULIC CYLINDER,Double Acting, 44.4mm Rod, 817.9mm Stroke

Hydraulic, Lift, Power Tan, 69.9 X 44.5, Incl. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, W

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland

1шт.

3

84304092

PISTON ROD,44.43mm OD x 1084.65mm L

Incl ref 9

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

84576195

SERVICE KIT

Cylinder Repair Kit (Not Shown)

1шт.

9

84241617

BUSHING,38.35mm ID x 47.62 OD x 18.8mm L

Tube Eye Bushing

2шт.

10

NSS

NOT SOLD SEPARAT

Bushing

1шт.
