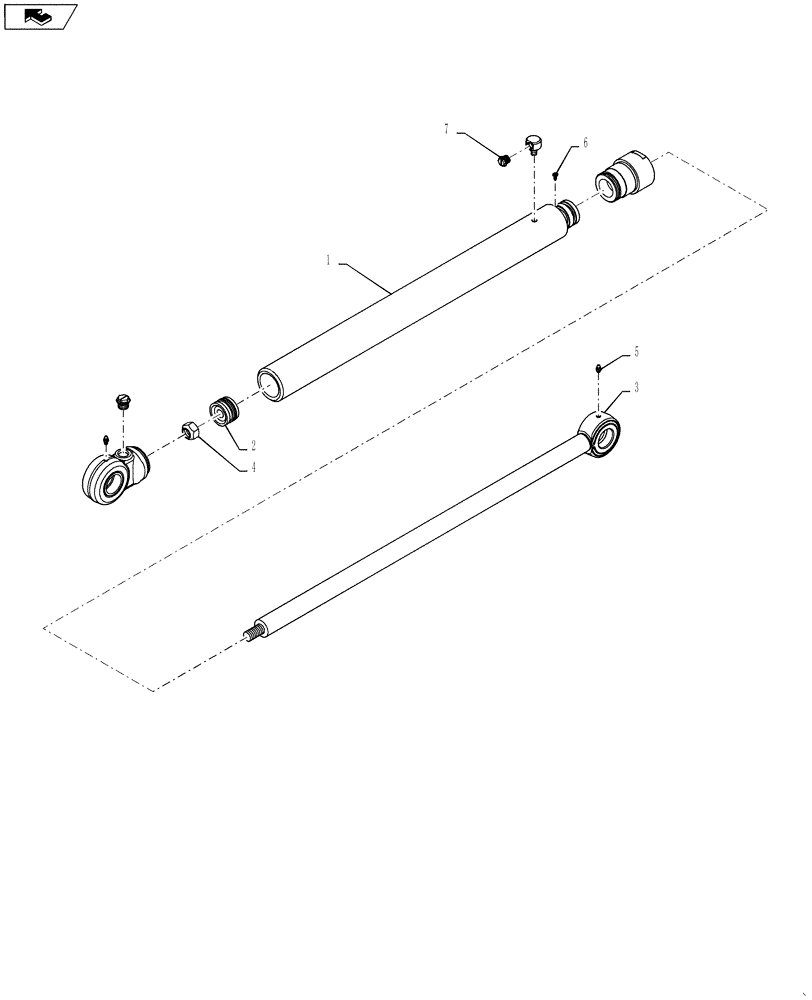

Запчасти Case TR320 (35.701.CB[01]) - HYDRAULIC LIFT CYLINDER, BSN NCM440429 (TR320) (35) - HYDRAULIC SYSTEMS

84303684

CYLINDER

Hydraulic, Lift, Power Tan, Incl. 1-7

1шт.

1

NSS

NOT SOLD SEPARAT

Tube, W

1шт.

2

NSS

NOT SOLD SEPARAT

Package, Piston-Gland

1шт.

3

84304092

PISTON ROD,44.43mm OD x 1084.65mm L

W

1шт.

4

280724

LOCK NUT,3/4" - 16

1шт.

5

87414

LUBE NIPPLE,1/4" - 28

2шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Locking

1шт.

7

86625120

PLUG,Sltd Hd, 3/4"-16, Yellow, Plastic

3/4-16

2шт.

8

87705824

SEAL KIT

Cylinder Repair Kit (Not Shown)

1шт.
