Запчасти Case TR320 (35.701.AX[02]) - LOADER VALVE PLUMBING (SR250,TR320) AFTER JULY 31, 2013 (35) - HYDRAULIC SYSTEMS

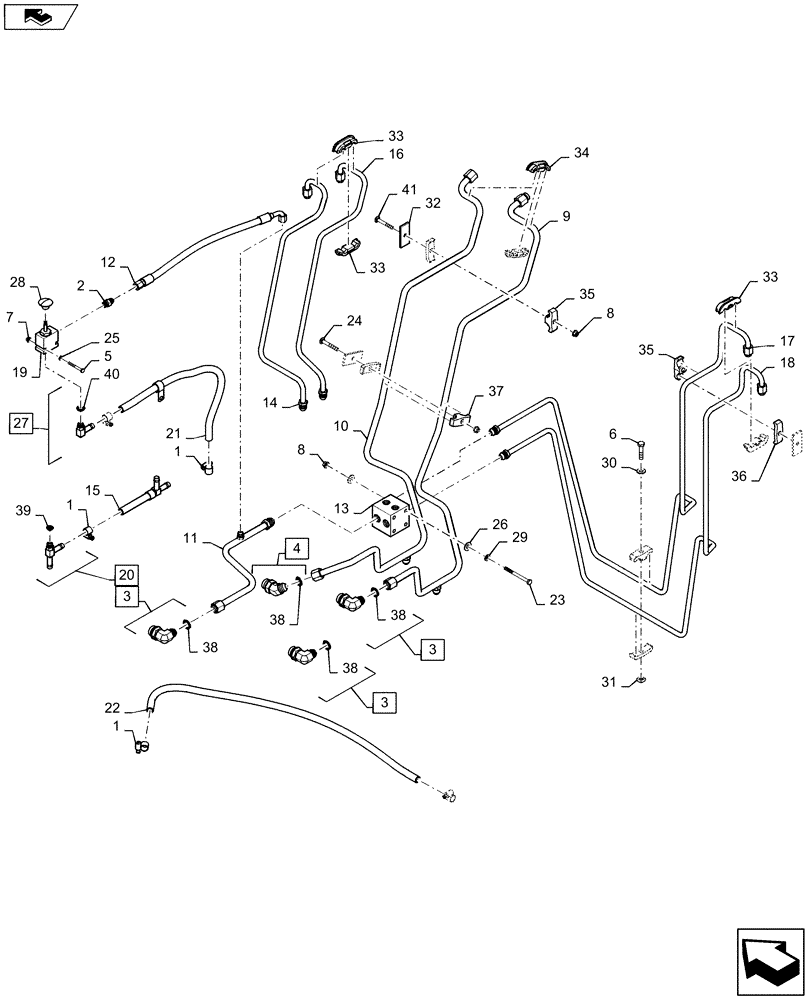

Схема запчастей Case TR320 - (35.701.AX[02]) - LOADER VALVE PLUMBING (SR250,TR320) AFTER JULY 31, 2013 (35) - HYDRAULIC SYSTEMS
38
33
15
7
31
2
39
1
38
22
24
38
1
home
23
32
5
36
14
33
34
20
35
12
21
16
3
38
27
8
30
33
3
13
41
26
11
29
37
10
3
17
19
28
9
18
6
1
8
25
40
35
4

Артикул

Название

Примечание

Количество

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

5шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

1шт.

3

84570

90 ELBOW,7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 38

3шт.

4

100197

ELBOW,45 Degree, 7/8" - 14 JIC x 1-1/16" - 12 ORB

Incl 38

1шт.

5

120056

BOLT,M6 x 1.0 x 54.15mm, Cl 8.8

2шт.

6

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

1шт.

7

9804276

FLANGE NUT,Hex, M6 x 1, Cl 8

2шт.

8

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

9

47398553

TUBE

Tip, Loader Valve to Right Arm, Serial Range: -

1шт.

10

47424991

TUBE

Tip, Loader Valve to Right Arm

1шт.

11

84181021

RIGID TUBE

Lift, Valve to Manifold

1шт.

12

84201224

HYDRAULIC HOSE,9.53mm ID x 535mm L, SAE 100R16

Override

1шт.

13

84258823

HYDRAULIC MANIFOLD

1шт.

14

84258884

RIGID TUBE

Lower, Manifold to Right Arm

1шт.

15

84259682

UNION TEE,12.5mm ID 125mm Hose, W/ 1/2" Barb Tee

1шт.

16

84259727

RIGID TUBE

Lift, Manifold to Right Arm

1шт.

17

84259729

RIGID TUBE

Lift, Manifold to Left Arm

1шт.

18

84259731

RIGID TUBE

Lower, Manifold to Left Arm

1шт.

19

84294239

VALVE

1шт.

20

84299732

FITTING,Hose, 1/2" x 1/2" Barb x 9/16 - 18" ORB

Incl 39

1шт.

21

84299733

HOSE,12.7mm ID x 660mm L

Override to EH Aux Drain

1шт.

22

84299735

HOSE,12.7mm ID x 915mm L

1шт.

23

86508571

BOLT,Hex, M8 x 90mm, Cl 8.8

2шт.

24

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

2шт.

25

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Years: -01-NOV-13

2шт.

26

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

4шт.

27

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 40

1шт.

28

87522292

KNOB

Override Valve

1шт.

29

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

30

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

31

230427A1

SQUARE NUT,M10 x 1.5mm, Cl 8

1шт.

32

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

3шт.

33

376523A2

SUPPORT,1/2"

Tube

4шт.

34

376524A2

SUPPORT,5/8"

Tube

2шт.

35

D120613

CLAMP,20mm ID

2шт.

36

D120614

CLAMP,25mm W x 68mm L x 9mm Thk

4шт.

37

D120679

CLAMP,Tube, 1/2"

2шт.

38

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.

39

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

41

86512445

CARRIAGE BOLT,Sht Nk, M8 x 60mm, Cl 8.8

2шт.

Выбрано товаров: 41
