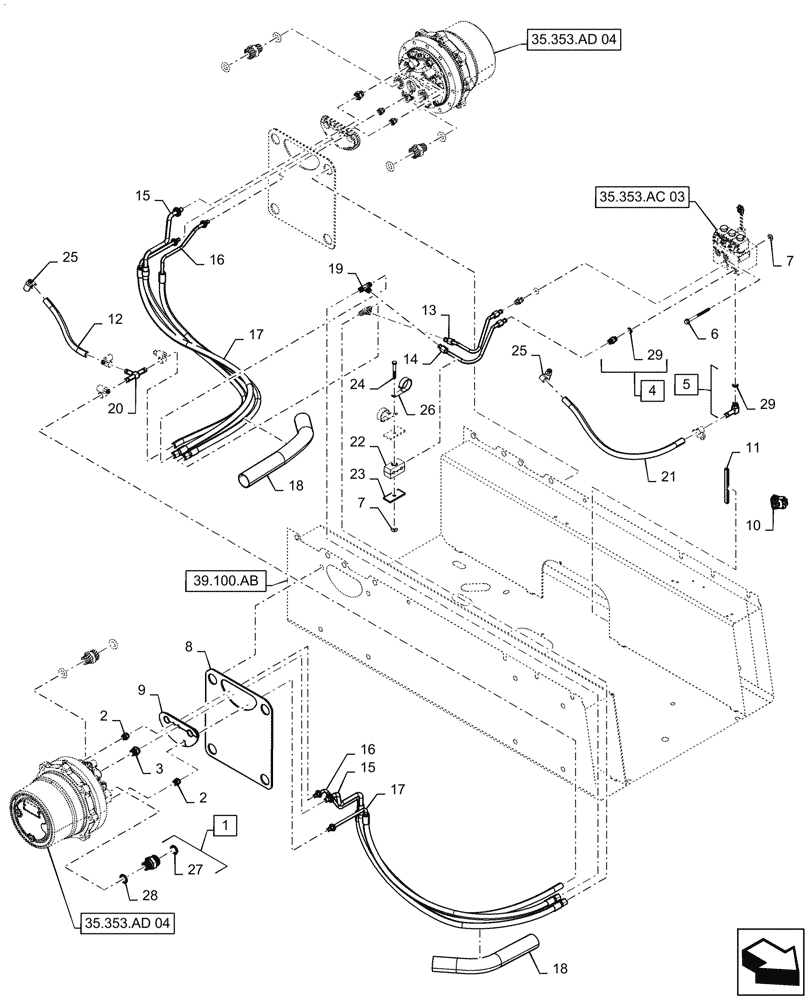

Запчасти Case TR310 (35.353.AE[02]) - HYDROSTATIC MOTOR LINES, ELECTRONIC CONTROLS (03-OCT-2016 & NEWER) (35) - HYDRAULIC SYSTEMS

1

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 27, 28

4шт.

2

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

4шт.

3

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

2шт.

4

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 29

2шт.

5

86705580

FITTING,90 Degree, 1/2" Hose Bead x 9/16" - 18 ORB

Incl 29

1шт.

6

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

7

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

8

84331874

PLATE

Grommet, Gray

2шт.

9

47893401

GROMMET

Chassis

2шт.

10

84388282

INDICATOR

High Speed

1шт.

11

84353803

TRIM,30.48m Bulk

Cut to Length, 480mm L

1шт.

12

47962917

HYDRAULIC HOSE,12.7mm ID x 340mm L

Case Drain

1шт.

13

47961991

HYD TUBE

Brake

1шт.

14

47961994

HYD TUBE

Two Speed

1шт.

15

48008357

HYD TUBE,12.5mm ID x 19.56mm OD x 1066mm L

Case Drain

2шт.

16

47961995

HYD TUBE,10mm ID x 1051mm L

Brake

2шт.

17

47961990

HYDRAULIC HOSE

2-Speed

2шт.

18

48008317

HOSE PROTECTION,46mm ID x 457mm L, Woven Nylon

Sleeve

2шт.

19

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

2шт.

20

84179891

ADAPTER,Tee, 1/2" Hose Barb x 1/2" Hose Barb x 1/2" Hose Barb

1шт.

21

84257173

HOSE,12.7mm ID x 570mm L

1шт.

22

86988833

CLAMP,9.52mm x 9.52mm, Dual Clamp Block

1шт.

23

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

24

120061

BOLT,Hex, M8 x 60mm L, Cl 8.8

1шт.

25

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

6шт.

26

87313355

CLAMP,38.1mm, Coat, 8.7mm Bolt Hole, J Type

2шт.

27

9992069

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

4шт.

28

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.

29

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

3шт.
