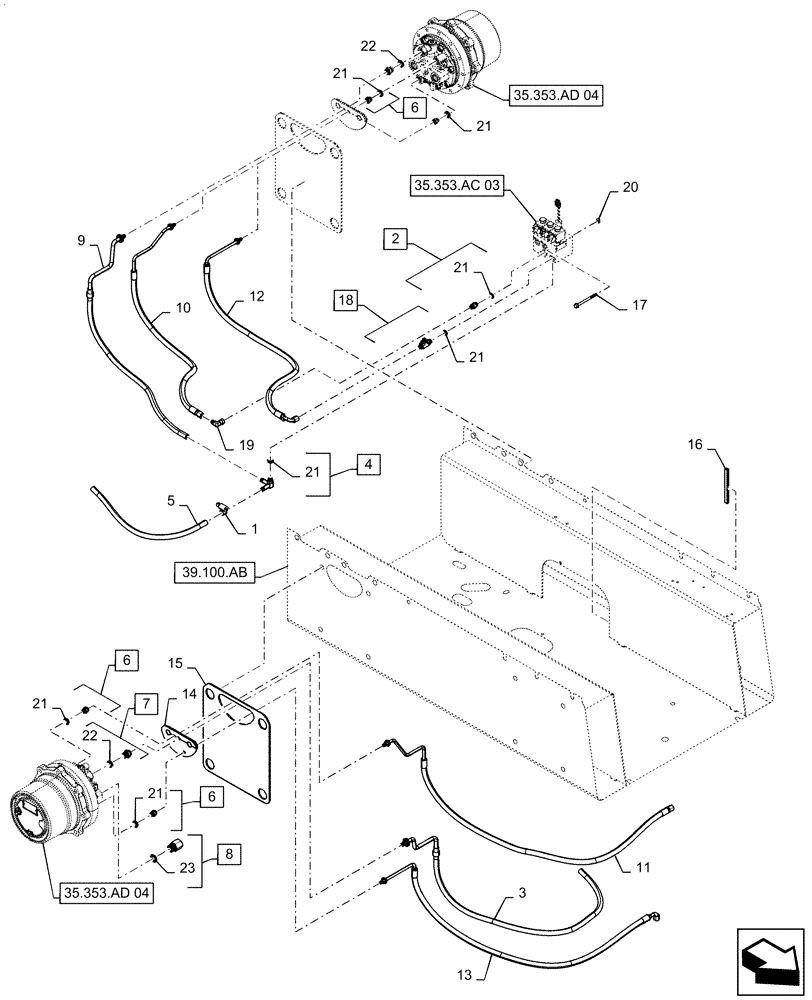

Запчасти Case TR310 (35.353.AE[02]) - HYDROSTATIC MOTOR LINES, ELECTRONIC CONTROLS (02-OCT-2016 & PRIOR) (35) - HYDRAULIC SYSTEMS

1

13021

HOSE CLAMP,12.7mm - 23.1mm, Worm Gear

4шт.

2

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 21

1шт.

3

47624613

HYD TUBE

12.7mm OD, RH, Case Drain

1шт.

4

84187294

ADAPTER,12.7mm OD Hose Bead x 12.7mm Hose Bead x 9/16" - 18 ORB

Incl 21

1шт.

5

84257173

HOSE,12.7mm ID x 570mm L

1шт.

6

84277064

ADAPTER,9/16" - 18 ORB x -6 Fem Quick Lock

Incl 21

4шт.

7

84277065

ADAPTER,3/4" - 16 ORB x -8 Fem Quick Lock

Incl 22

2шт.

8

84277066

ADAPTER,- 12 Fem Quick Lock HP x 1-1/16" - 12, - A3512 ORB

Female, HP Quick Lok, Incl 23, Years: -19-NOV-15

4шт.

8

87303844

HYD CONNECTOR,1-7/16" - 12 ORFS x 1-1/16" - 12 ORB

, Start Year: 20-NOV-15

4шт.

Serviceable O-rings: 128825 & 9992069

1шт.

9

84280443

HYD TUBE

12.7mm OD, LH, Case Drain

1шт.

10

84280448

RIGID TUBE

9.52mm OD, LH, Brake

1шт.

11

84280449

RIGID TUBE

9.52mm OD, RH, Brake

1шт.

12

84280451

FLEXIBLE HOSE,9.53mm ID x 1045mm L, SAE 100R1

LH, 2-Speed

1шт.

13

84280452

FLEXIBLE HOSE,9.53mm ID x 1245mm L, SAE 100R1

RH, 2-Speed

1шт.

14

84331670

GROMMET

179mm L, Chassis, Years: -19-NOV-15

2шт.

14

47893401

GROMMET

179mm L, Chassis, Start Year: 20-NOV-15

2шт.

15

84331874

PLATE

355mm L, Grommet

2шт.

16

84353803

TRIM,30.48m Bulk

480mm L

1шт.

17

86511844

BOLT,M8 x 1.25 x 100mm, 22mm Thd, Cl 8.8

2шт.

18

86513020

TEE,9/16" - 18 ORB x 9/16" - 18 JIC x 9/16" - 18 JIC

Incl 21

1шт.

19

86629586

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 Fem Sw

1шт.

20

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

21

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

22

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

23

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.
