(35.220.AA[01]) - HYDRAULIC PUMP, STANDARD 36CC

Запчасти Case TR310 (35.220.AA[01]) - HYDRAULIC PUMP, STANDARD 36CC (35) - HYDRAULIC SYSTEMS

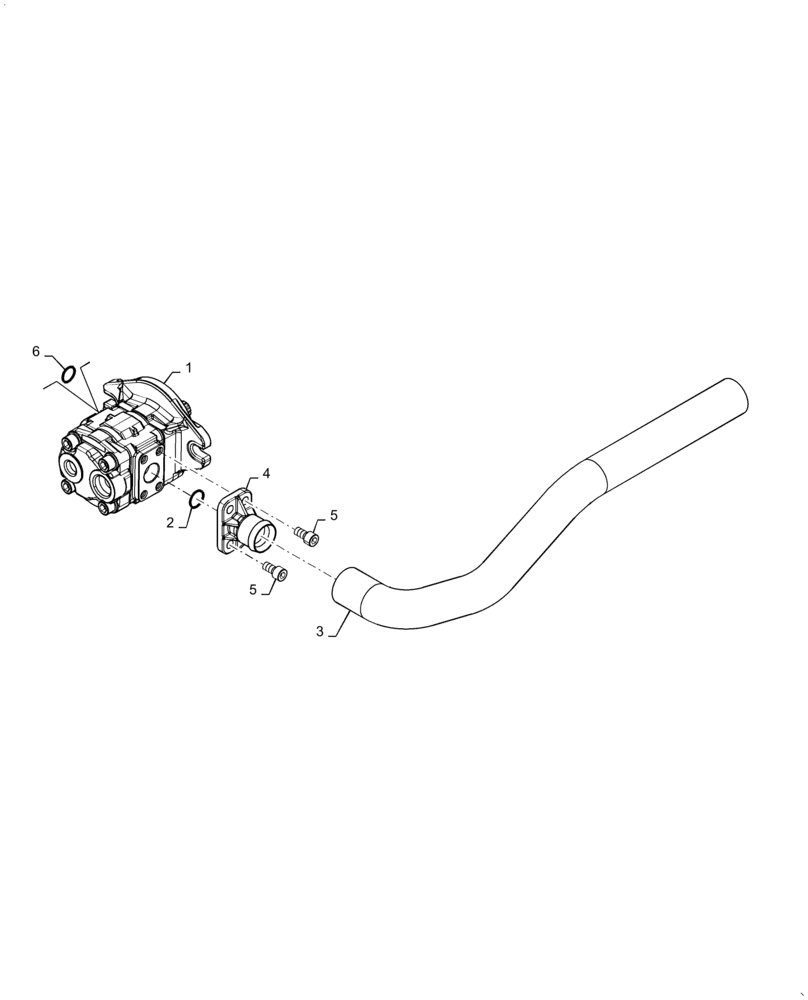

Схема запчастей Case TR310 - (35.220.AA[01]) - HYDRAULIC PUMP, STANDARD 36CC (35) - HYDRAULIC SYSTEMS
5
5
2
1
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84572269

PUMP,36.6 CC

Hydraulic

1шт.

2

14463580

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

1шт.

3

84349296

HOSE,38.1mm ID

, Years: -03-JUN-15

1шт.

3

47841484

HOSE

Gear Pump Suction, Start Year: 04-JUN-15

1шт.

4

84561027

FITTING

Gear Pump Suction

1шт.

5

14307321

HEX SOC SCREW,M10 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

6

84389261

SEAL KIT

Services 1

1шт.
