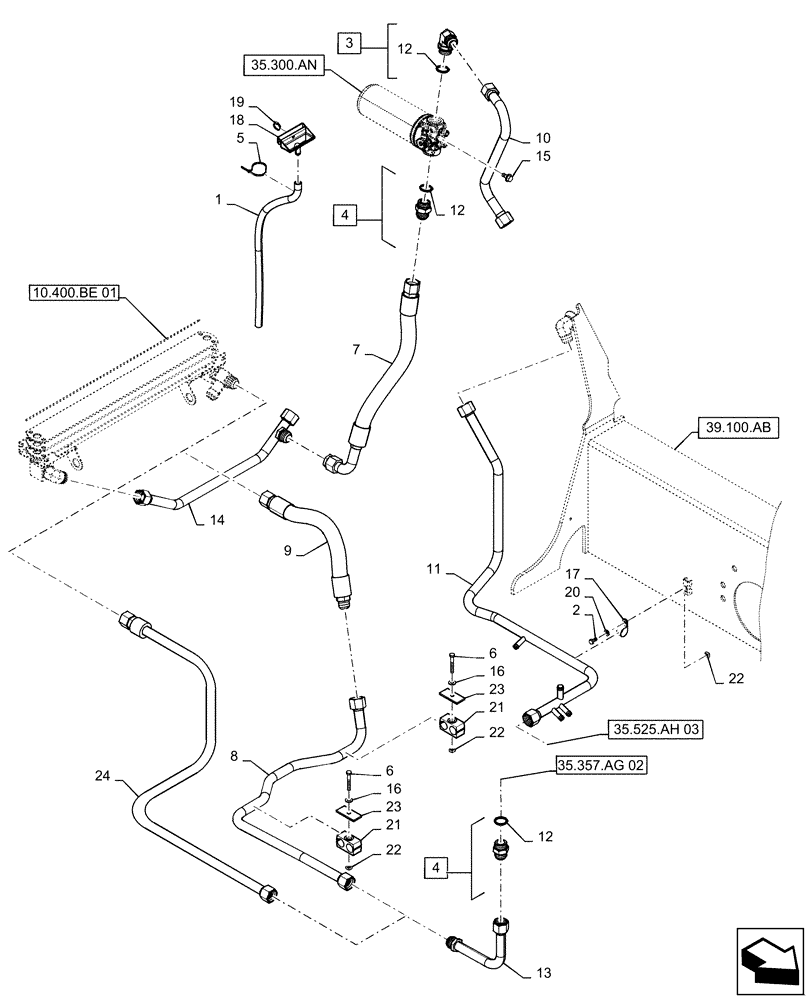

Запчасти Case TR310 (35.100.AB) - HYDRAULIC RETURN LINES (35) - HYDRAULIC SYSTEMS

1

93963

PLASTIC-RUBBER TUBE,0.50" ID x 0.75" OD

2.0 FT

1шт.

2

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

1шт.

3

268277

90 ELBOW,1-5/16" - 12 JIC x 1-5/16" - 12 ORB

Incl 12

1шт.

4

378970

HYD CONNECTOR,1-5/16" - 12 ORB x 1-5/16" - 12 JIC

Incl 12

2шт.

5

646223

STRAP,8.0" L

Nylon

1шт.

6

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

2шт.

7

47462048

HYDRAULIC HOSE,25.4mm ID x 665mm L, SAE 100R4

Oil Cooler Outlet

1шт.

8

47539984

TUBE

25.4mm OD, Loader Valve Outlet

1шт.

Replaced By Ref. 24 For Easier Installation

1шт.

9

47685163

HOSE,25mm ID X 520mm L x 1-5/16" - 12 x 1-5/16" - 12

520mm L, Loader Valve Outlet to Oil Cooler

1шт.

Replaced By Ref. 24 For Easier Installation

1шт.

10

47662390

HYD TUBE

25.4mm OD, Hydraulic Filter Return

1шт.

11

47684509

HYD TUBE

25.4mm OD, Case Drain Manifold

1шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

3шт.

13

84310722

RIGID TUBE

25.4mm OD, Loader Valve Outlet to Drain Port Valve

1шт.

14

84375905

RIGID TUBE

25.4mm OD, Oil Cooler Outlet

1шт.

15

86050286

FLANGE BOLT,M10 x 20mm, Cl 8.8

2шт.

16

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

17

86637977

CLAMP,25.4mm, Coat, 8.7mm Bolt Hole, P Type

1шт.

18

87455867

FUNNEL

Oil Filter

1шт.

19

87642915

CABLE TIE,198mm L

Nylon

1шт.

20

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

21

225529A1

CLAMP,Dual, 25.4mm ID

Tube

2шт.

22

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

3шт.

23

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

Bar Clamp Top

2шт.

24

47537813

HOSE,19mm ID X 1745mm L x 1-5/16" - 12 x 1-5/16" - 12

1745mm L

1шт.

Replaces Ref. 8 and 9 For Easier Installation

1шт.
