Запчасти Case TR310 (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE

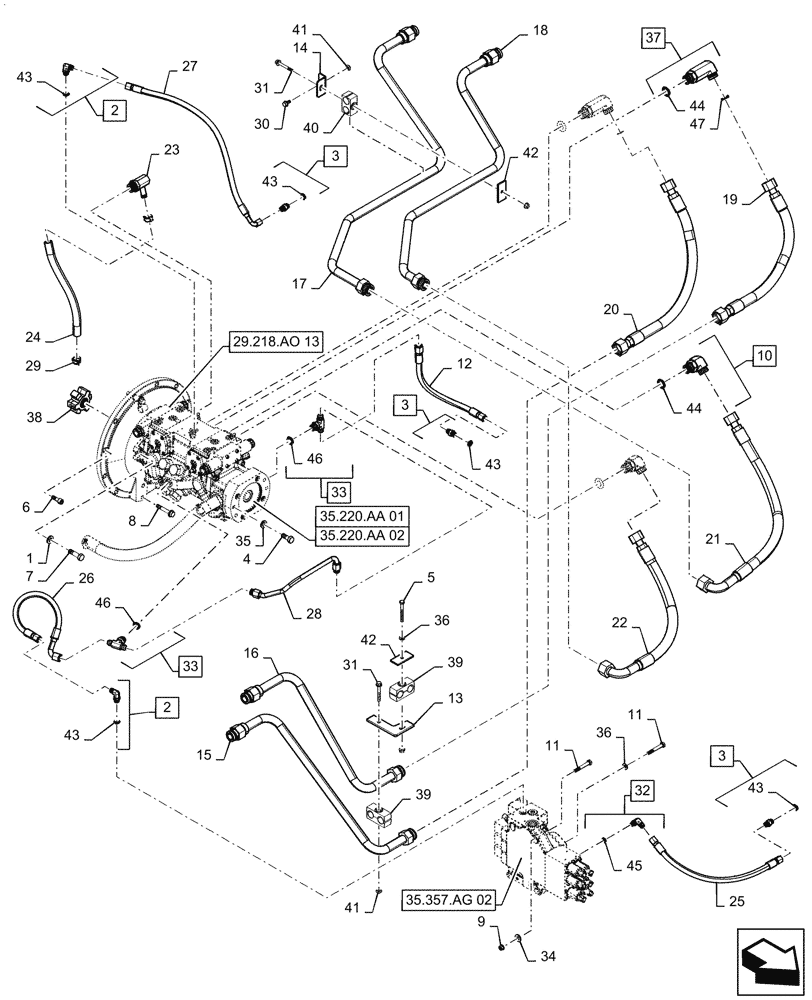

Схема запчастей Case TR310 - (29.204.AB[03]) - HYDROSTATIC PUMP, DRIVE LINES, E-H CONTROLS (20-NOV-2015 & NEWER) (29) - HYDROSTATIC DRIVE
29.218.ao 13
37
42
35
46
43
11
3
32
13
29
24
43
11
1
25
7
21
22
41
31
26
42
47
23
44
28
16
34
8
39
14
44
5
31
4
38
3
36
40
45
41
43
20
17
33
39
3
30
12
27
36
46
33
2
6
9
18
10
2
15
43
43
19
35.220.aa 01
35.220.aa 02
35.357.ag 02

Артикул

Название

Примечание

Количество

1

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

2шт.

2

76344

90 ELBOW,9/16" - 18 JIC x 9/16" - 18 ORB

Incl 43

2шт.

3

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl 43

3шт.

4

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

5

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

6

300442

HEX SOC SCREW,M10 x 30mm, Cl 8.8

9шт.

7

9790095

BOLT,1/2" - 13 x 1-3/4", Gr 8

2шт.

8

9804265

FLANGE BOLT,Hex, M10 x 60mm, Cl 8.8

2шт.

9

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

3шт.

10

9846848

90 ELBOW,1-3/16"-12 ORFS x 1-1/16"-12 ORB

Incl 44

2шт.

11

16044321

BOLT,M8 x 1.25 x 55mm, Cl 8.8

3шт.

12

47845789

HOSE,10mm ID x 420mm L

Brake Charge

1шт.

13

47893882

PLATE

Clamp Mounting

1шт.

14

47895194

BRACKET

Clamp Mounting

1шт.

15

47895275

HYD TUBE

RH CTL Drive Motor

1шт.

16

47895277

HYD TUBE

RH CTL Drive Motor

1шт.

17

47895283

HYD TUBE

LH CTL Drive Motor

1шт.

18

47895285

HYD TUBE

LH CTL Drive Motor

1шт.

19

47926578

HOSE,19mm ID x 565mm L, SAE100R19

Loop

1шт.

20

47926580

HOSE,19mm ID x 670mm L, SAE100R19

Loop

1шт.

21

47926582

HOSE,19mm ID x 760mm L, SAE100R19

Loop

1шт.

22

47926584

HOSE,19mm ID x 645mm L, SAE100R19

Loop

1шт.

23

84273629

FITTING,1-1/16" - 12 ORB x M10 x 1 x 5/8" Hose Barb

1шт.

24

84273646

HOSE,15.88mm ID x 304.8mm L

Pump Drain

1шт.

25

84288343

FLEXIBLE HOSE,9.53mm ID x 750mm L, SAE 100R17

Control to Brake

1шт.

26

84299736

FLEXIBLE HOSE,9.53mm ID x 512mm L, SAE 100R17

LV Interlock

1шт.

27

84309599

FLEXIBLE HOSE,9.53mm ID x 780mm L, SAE 100R17

Brake NOR

1шт.

28

84349300

RIGID TUBE,12.7mm OD

Charge Supply

1шт.

29

84549542

CLAMP,20.5mm - 24mm, Hose

2шт.

30

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

1шт.

31

86511843

BOLT,Hex Flng, M8 x 1.25 x 60mm, Cl 8.8

2шт.

32

86512936

ELBOW,9/16" - 18 JIC x 7/16" - 20 ORB

Incl 45

1шт.

33

86513024

TEE,3/4" - 16 ORB x 3/4" - 16 JIC x 3/4" - 16 JIC

Incl 46

2шт.

34

86625253

WASHER,11mm ID x 24mm OD x 2mm Thk

1шт.

35

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

36

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

37

87661865

HYD CONNECTOR,1-3/16" - 12 ORFS x 1-1/16" - 12 ORB

Incl 44, 47

2шт.

38

87711337

COUPLING,19T, 1-1/8" ID

Drive Star

1шт.

39

1546028C1

CLAMP,25.4mm ID x 82mm L

Tube

2шт.

40

225529A1

CLAMP,Dual, 25.4mm ID

Tube

1шт.

41

229197A1

SQUARE NUT,M8 x 1.25, Cl 8

2шт.

42

257859A1

PLATE, SPACER,31.8mm W x 68mm L x 4.76mm Thk

2шт.

43

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

44

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

45

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

46

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

47

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

Выбрано товаров: 47
