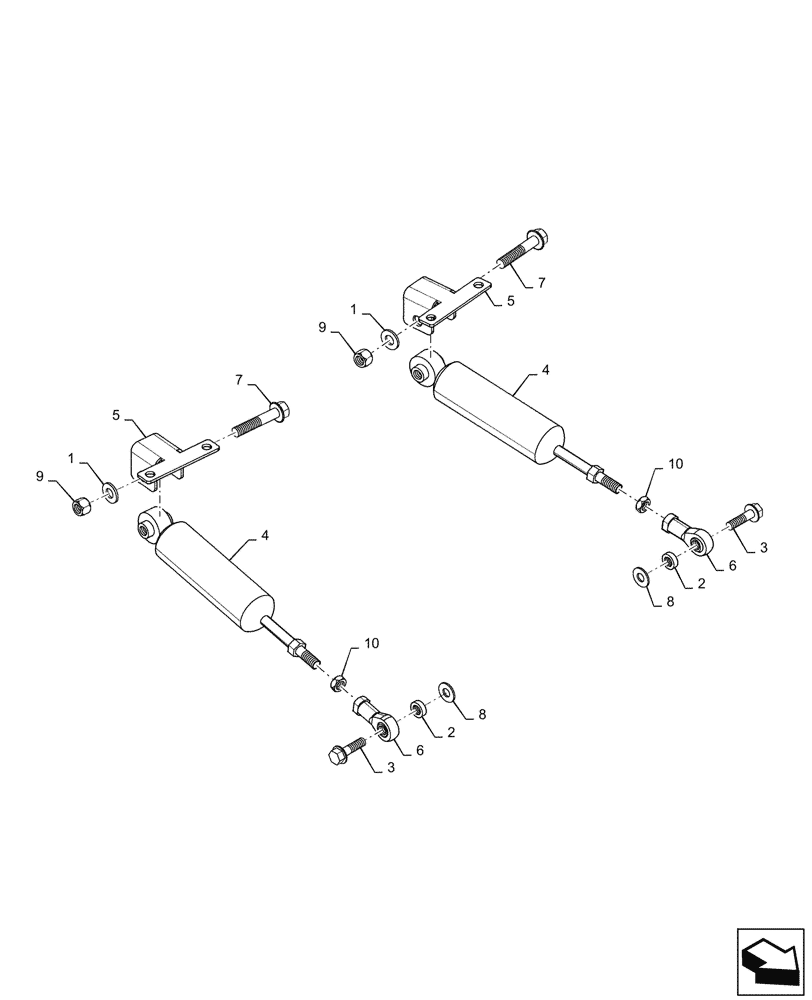

Запчасти Case TR310 (29.200.AM[02]) - CONTROL DAMPER (29) - HYDROSTATIC DRIVE

1

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

2шт.

2

694371

SPACER,9.77mm ID x 15.87mm OD x 5.03mm Thk

2шт.

3

9804260

BOLT,Hex, M8 x 1.25 x 30mm, Full Thd, Cl 8.8

2шт.

4

9826723

DAMPER

176mm L, Compressed

2шт.

5

84258844

BRACKET

Shock Mounting

2шт.

6

86500348

BALL JOINT HEAD,3/8" - 24

2шт.

7

86533830

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

8

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

9

87034524

NUT,Prevailing Torque, 3/8” - 16, Gr A

2шт.

10

87319446

JAM NUT,Hex, 3/8" - 24, Gr 5

2шт.
