(90.160.AR[03]) - FLOOR MAT, EH CONTROLS

Запчасти Case TR310 (90.160.AR[03]) - FLOOR MAT, EH CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS

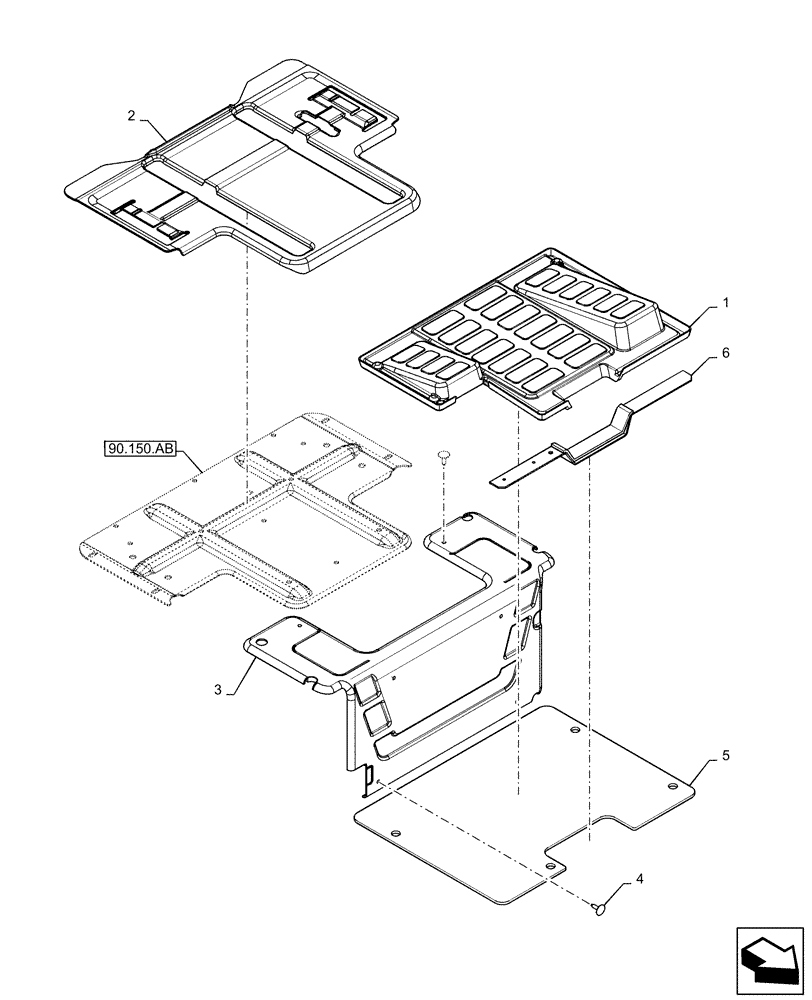

Схема запчастей Case TR310 - (90.160.AR[03]) - FLOOR MAT, EH CONTROLS (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
5
6
90.150.ab
1
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47478020

TRIM

Floor Mat

1шт.

2

84271712

FLOOR MAT

Seat Pan

1шт.

3

84397556

MAT

Heel Plate

1шт.

4

86620930

FASTENER,Push-In, 1.10" L, Nylon

6шт.

5

47504907

FOAM

623.9mm L, No Pedal Floor Plate

1шт.

6

84372707

FOAM

265mm L, Front Floor Plate

1шт.

Выбрано товаров: 6
