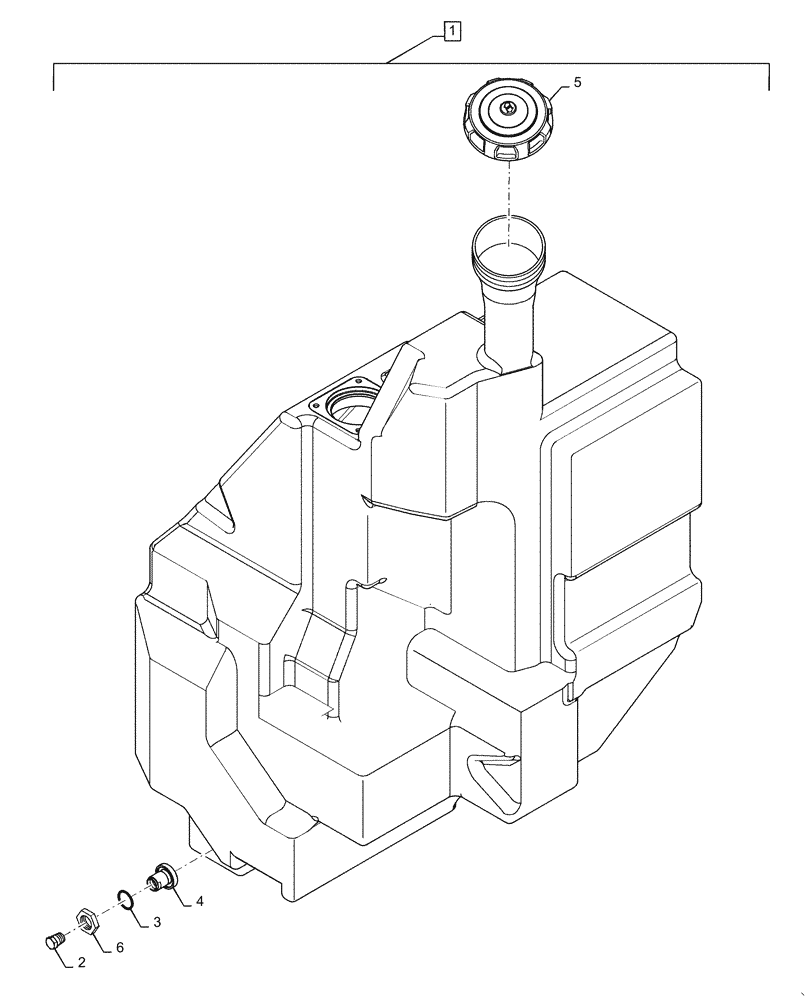

Запчасти Case TR310 (10.216.AI) - FUEL TANK (10) - ENGINE

1

84599867

FUEL TANK

Incl 2 - 6, 20.0 Gal/75.5 L

1шт.

2

9576801

PLUG,1/4" - 18 NPT

1шт.

3

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

4

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

Fuel Tank Drain

1шт.

5

48088756

W/ Check Valve, Non Lockable

FILLER CAP

1шт.

6

1251791C1

JAM NUT,3/4" - 16 LH Thread

Fuel Tank Drain Fitting

1шт.
