(90.151.AD[01]) - SEAT BELT

Запчасти Case TR310 (90.151.AD[01]) - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS

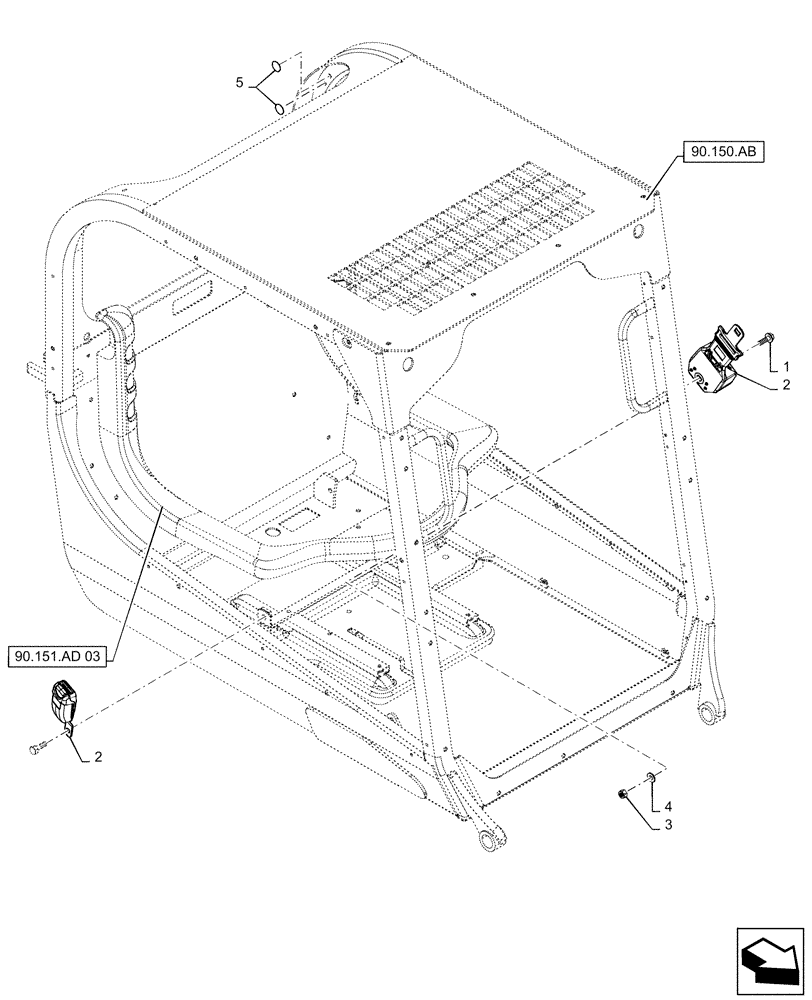

Схема запчастей Case TR310 - (90.151.AD[01]) - SEAT BELT (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
90.151.ad 03
4
5
2
90.150.ab
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9804262

BOLT,M10 x 39.2mm, Cl 8.8

1шт.

2

84174264

SEAT BELT,51mm W x 1447mm L

1шт.

2

84174263

SEAT BELT

1шт.

3

86512554

NUT,M10 x 1.5, Cl 10

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

5

414635A1

COVER,25.4mm OD x 0.51mm Thk

2шт.

Plug Holes Used By Shoulder Belt

1шт.

Выбрано товаров: 7
