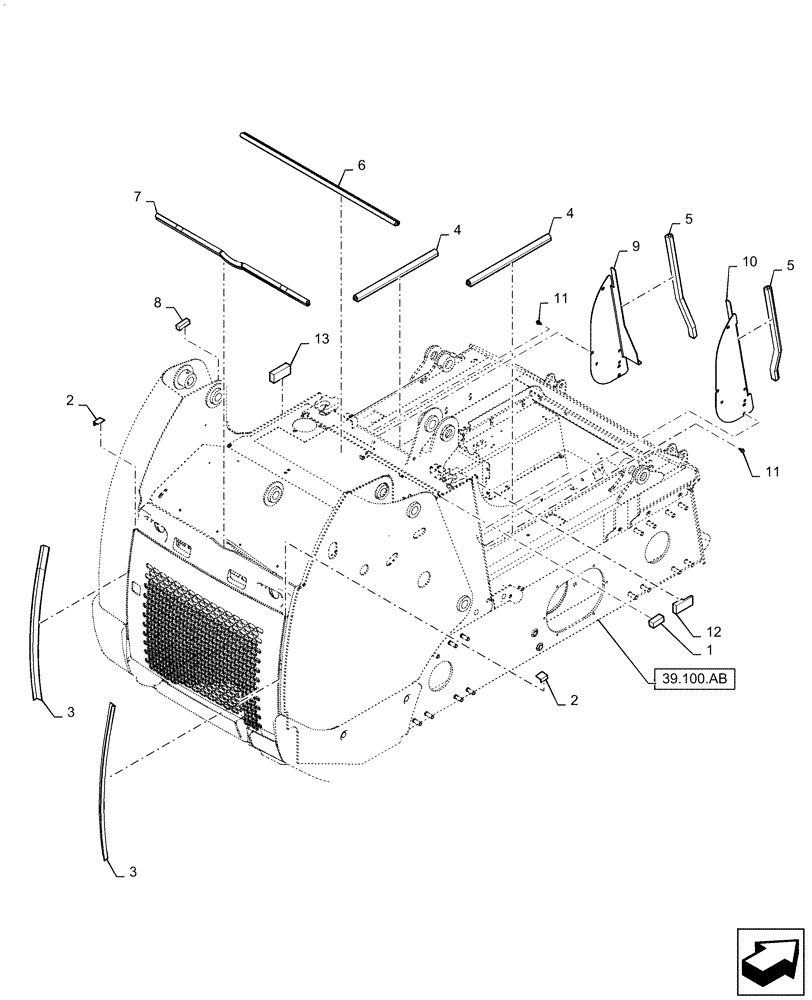

Запчасти Case TR310 (90.105.CU) - COVERS & INSULATION (14-FEB-2017 AND BEFORE) (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47729705

FOAM

60mm L, Seal Block

1шт.

2

47729707

SEAL

35mm L, Flap

2шт.

3

47729715

SEAL

760mm L, Flap

2шт.

4

47729721

RUBBER SEAL,465mm L

465mm L, Adhesive

2шт.

5

47729722

RUBBER SEAL,545mm L

545mm L, Adhesive

2шт.

6

47729730

SEAL

897mm L, Bulb

1шт.

7

47764946

SEALING STRIP,877mm L

877mm L, Bulb

1шт.

8

47765520

FOAM INSULATION

60mm L, Seal Block

1шт.

9

47765958

COVER

LH, Chassis Vent

1шт.

10

47765960

COVER

RH, Chassis Vent

1шт.

11

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

6шт.

12

84600485

FOAM INSULATION

95mm L, RH, Hood

1шт.

13

84600487

FOAM INSULATION

95mm L, LH, Hood

1шт.
