(90.100.AU[01]) - HOOD & STRUT, AIR CONDITIONED

Запчасти Case TR310 (90.100.AU[01]) - HOOD & STRUT, AIR CONDITIONED (90) - PLATFORM, CAB, BODYWORK AND DECALS

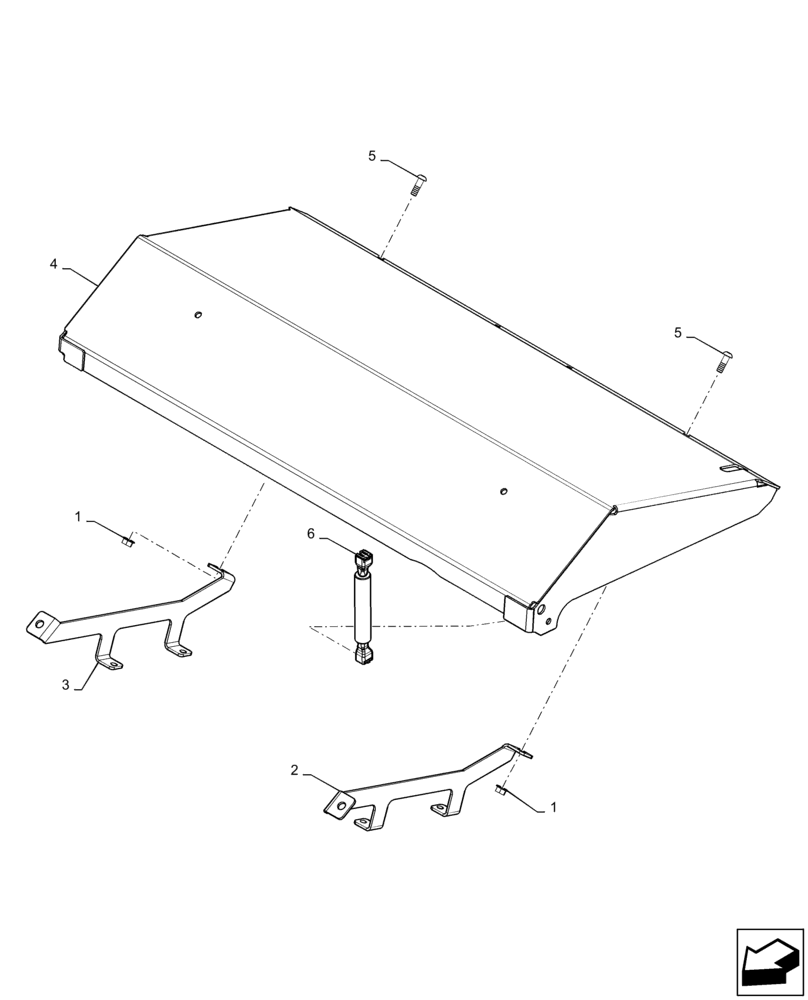

Схема запчастей Case TR310 - (90.100.AU[01]) - HOOD & STRUT, AIR CONDITIONED (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
5
1
1
2
6
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

2

47507805

REINFORCEMENT

LH, Tilt Hood

1шт.

3

47507807

REINFORCEMENT

RH, Tilt Hood

1шт.

4

47623610

HOOD

Tilt

1шт.

5

87028323

HEX SOC SCREW,Btn Head, M8 x 1.25 x 25mm, Cl 8.8

4шт.

6

400472A1

SPRING,10mm Rod, 38.1mm Stroke

Hood Assist

1шт.

Выбрано товаров: 6
