(88.100.48[02]) - DIA KIT, CRT TRACK ASSY COVERS, MEDIUM FRAME

Запчасти Case TR310 (88.100.48[02]) - DIA KIT, CRT TRACK ASSY COVERS, MEDIUM FRAME (88) - ACCESSORIES

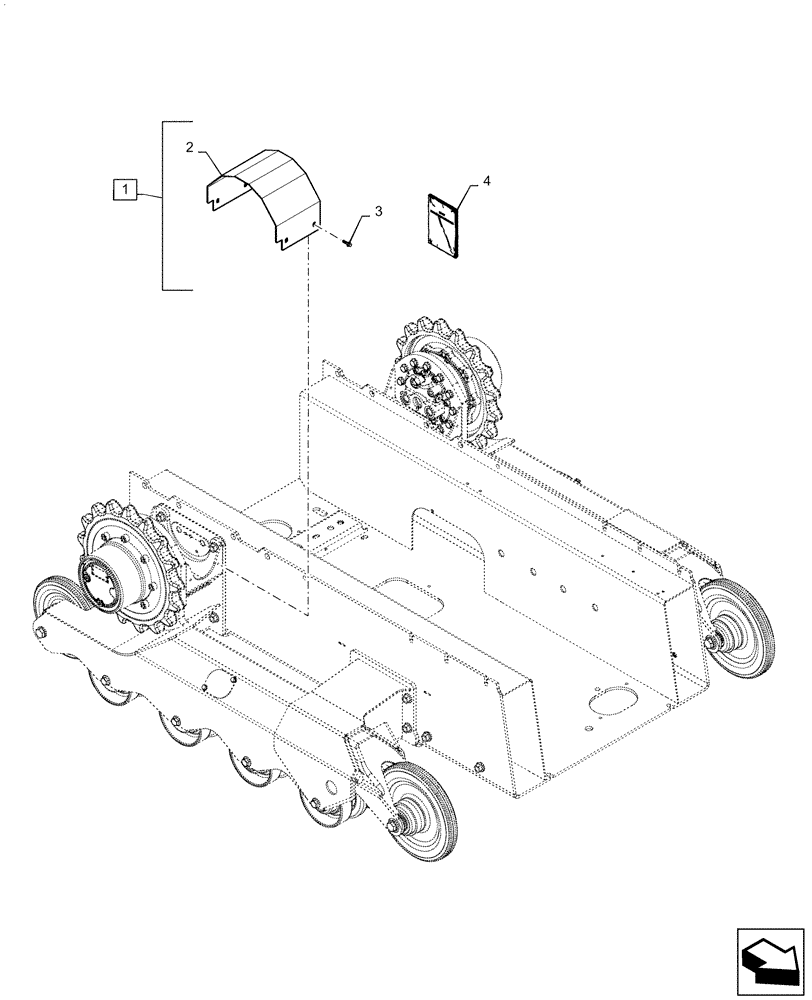

Схема запчастей Case TR310 - (88.100.48[02]) - DIA KIT, CRT TRACK ASSY COVERS, MEDIUM FRAME (88) - ACCESSORIES
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47857776

KIT

Track Motor Plumbing Cover, Incl 2 - 4

1шт.

2

47857759

COVER

Tack Motor Cover, Gray

2шт.

3

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

8шт.

4

47857785

INSTRUCTION

Sheet

1шт.
