(55.512.BW[01]) - MULTIFUNCTION ELECTRICAL

Запчасти Case TR310 (55.512.BW[01]) - MULTIFUNCTION ELECTRICAL (55) - ELECTRICAL SYSTEMS

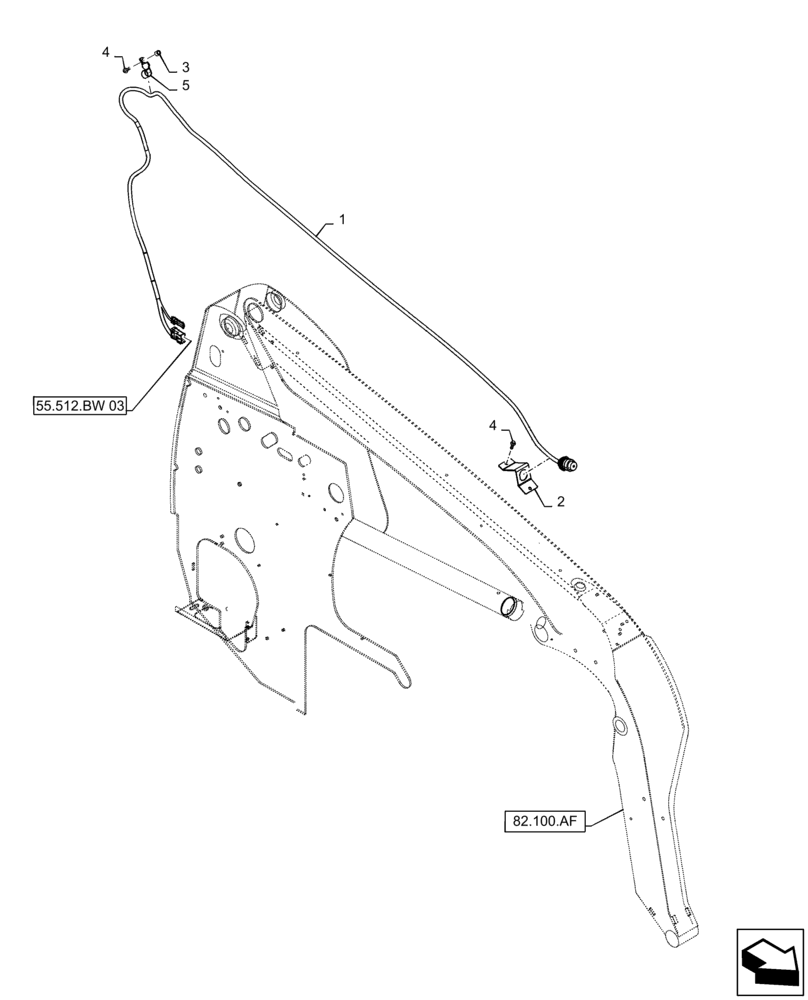

Схема запчастей Case TR310 - (55.512.BW[01]) - MULTIFUNCTION ELECTRICAL (55) - ELECTRICAL SYSTEMS
82.100.af
2
4
3
5
4
1
55.512.bw 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84251321

WIRE HARNESS

Aux Electrical, Radial Lift

1шт.

2

84293533

BRACKET, SUPPORTING

Front Aux Electrical

1шт.

3

86589143

SPACER,9.5mm ID x 15.9mm OD x 12.7mm L

1шт.

4

87016557

SELF-TAP SCREW,Hex, M8 x 1.25 x 25mm

3шт.

5

R45966

CLAMP,0.94mm, Coat, 90 Degree Twist

1шт.

Выбрано товаров: 5
