(55.511.AJ) - REAR LIGHT HARNESS, W/O TURN SIGNAL

Запчасти Case TR310 (55.511.AJ) - REAR LIGHT HARNESS, W/O TURN SIGNAL (55) - ELECTRICAL SYSTEMS

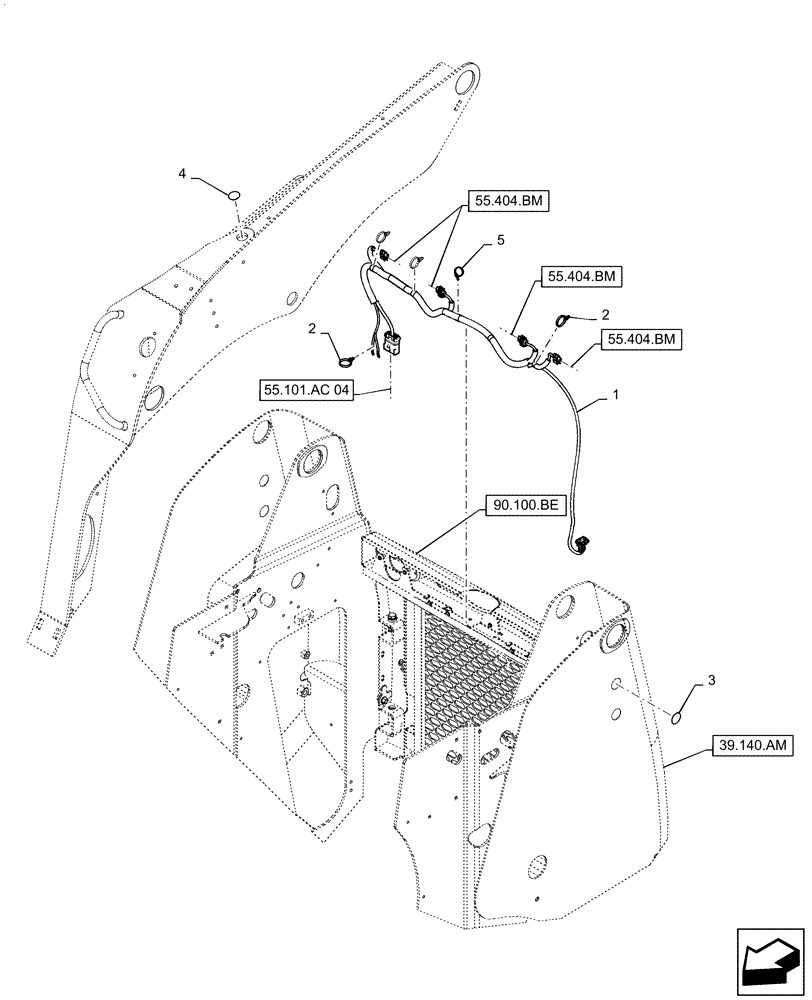

Схема запчастей Case TR310 - (55.511.AJ) - REAR LIGHT HARNESS, W/O TURN SIGNAL (55) - ELECTRICAL SYSTEMS
55.404.bm
3
2
5
4
2
1
55.101.ac 04
90.100.be
39.140.am
55.404.bm
55.404.bm
55.404.bm
55.404.bm
55.404.bm
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47826978

WIRE HARNESS

Rear Lamp Jumper

1шт.

2

87668737

CABLE TIE,203.2mm L, Nylon, Black

Nylon

5шт.

3

299274A2

COVER,35mm OD

4шт.

4

429630A2

CAP COVER,43mm OD

2шт.

5

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

4шт.

Выбрано товаров: 5
