(55.404.CY[04]) - REAR LIGHT, ASSY

Запчасти Case TR310 (55.404.CY[04]) - REAR LIGHT, ASSY (55) - ELECTRICAL SYSTEMS

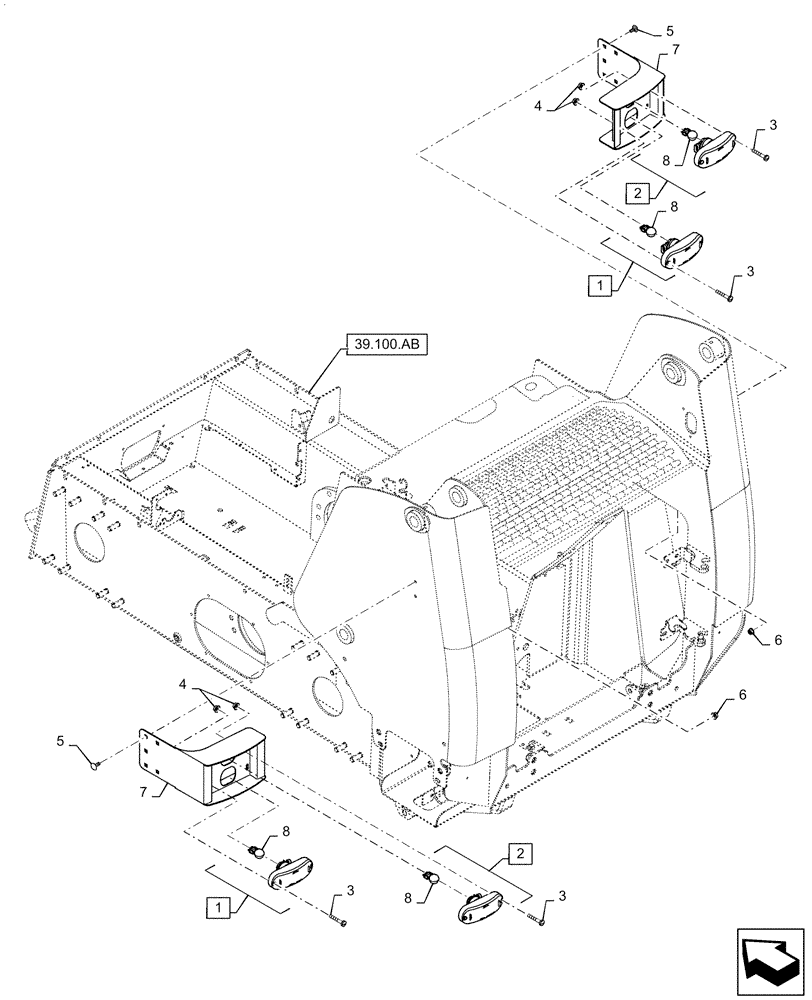

Схема запчастей Case TR310 - (55.404.CY[04]) - REAR LIGHT, ASSY (55) - ELECTRICAL SYSTEMS
39.100.ab
4
8
8
5
5
7
3
3
7
3
3
1
1
6
8
8
4
2
2
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87629587

LIGHT ASSY.,12V, 27W, Amber

Warning Lamp, Incl 8

2шт.

2

87627854

LIGHT ASSY.,12V, 27W, Red

Rear Stop, Tail Lamp, Incl 8

2шт.

3

86502967

SCREW,Phillips Drive, Pan HD, M5 x 30mm, Cl 4.8

8шт.

4

86512495

FLANGE NUT,Hex, M5, Cl 8

8шт.

5

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

4шт.

6

9804277

FLANGE NUT,Hex, M8 x 1.25, Cl 8

4шт.

7

84419628

BRACKET

Rear Tail Light, Mounting

2шт.

8

87642985

BULB,3157, 12V, 26.5W, Clear

4шт.
