(55.302.AI) - BATTERY DISCONNECT

Запчасти Case TR310 (55.302.AI) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS

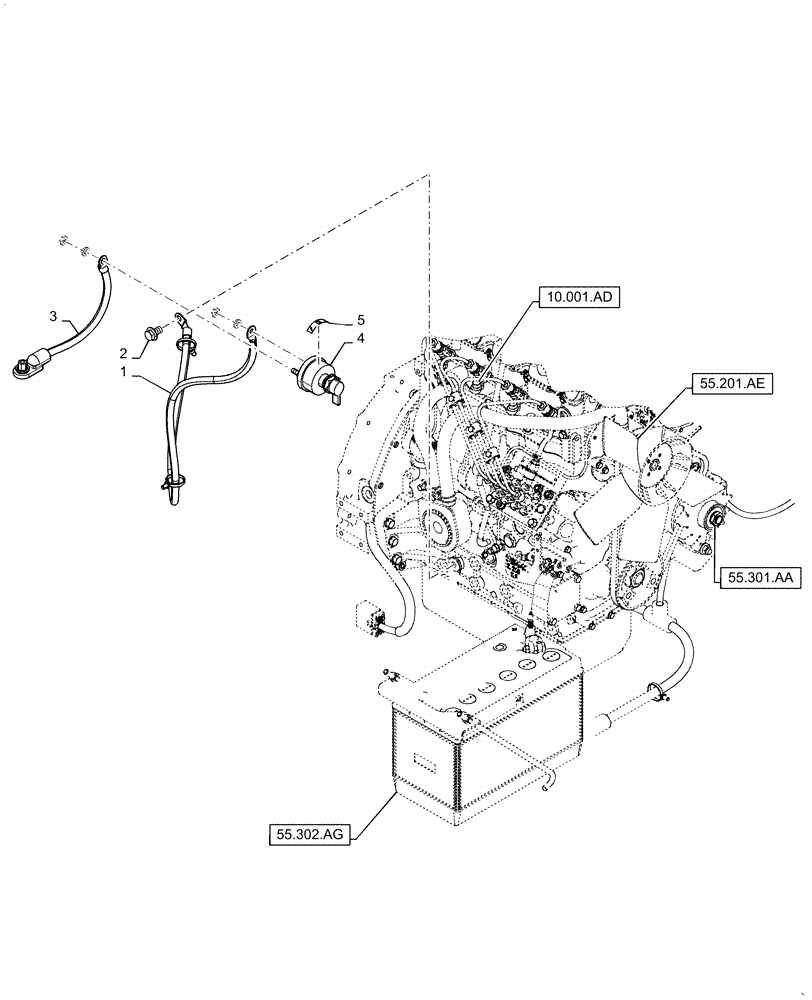

Схема запчастей Case TR310 - (55.302.AI) - BATTERY DISCONNECT (55) - ELECTRICAL SYSTEMS
10.001.ad
3
2
5
1
4
55.301.aa
55.302.ag
55.201.ae
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84599381

GROUND CABLE,1001mm L

Disconnect Switch to Engine Ground

1шт.

2

87698844

BOLT,Hex, M12 x 1.75 x 20mm, Full Thd, Cl 10.9

1шт.

3

47721262

NEG BATTERY CABLE

340mm L, Negative Battery Terminal to Disconnect Switch

1шт.

4

87458467

ROTARY SWITCH

Master Battery Disconnect

1шт.

5

176332A1

DECAL

Battery Disconnect

1шт.
