Запчасти Case TR310 (55.101.AC[25]) - CHASSIS OPTION HARNESS, MECHANICAL CONTROLS (55) - ELECTRICAL SYSTEMS

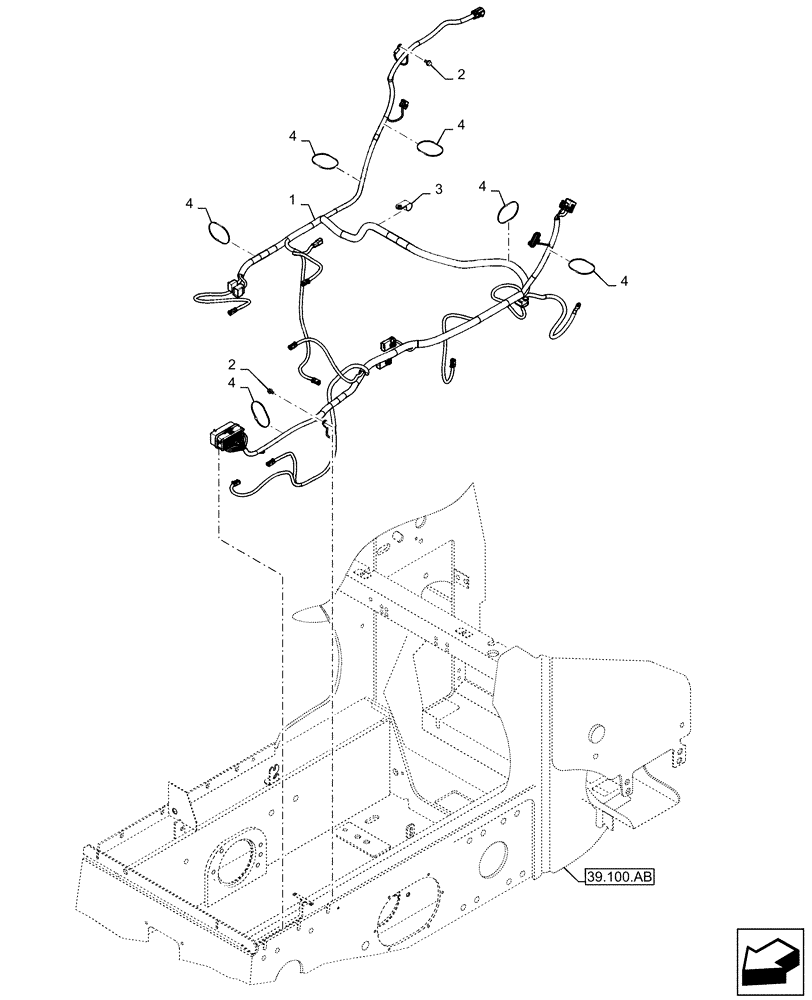

Схема запчастей Case TR310 - (55.101.AC[25]) - CHASSIS OPTION HARNESS, MECHANICAL CONTROLS (55) - ELECTRICAL SYSTEMS
39.100.ab
4
4
4
4
3
4
4
2
1
2

Артикул

Название

Примечание

Количество

1

47747270

WIRE HARNESS

Chassis Options, Medium Frame

1шт.

2

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

3шт.

3

86000810

CLAMP,27mm, Coat, 13.5mm Bolt Hole, P Type

1шт.

4

263117

CABLE TIE,292.1mm L, Nylon, Black

Nylon

8шт.

Выбрано товаров: 4
