(55.100.DO[02]) - FUSE BOX COVER ASSY & CUP HOLDER

Запчасти Case TR310 (55.100.DO[02]) - FUSE BOX COVER ASSY & CUP HOLDER (55) - ELECTRICAL SYSTEMS

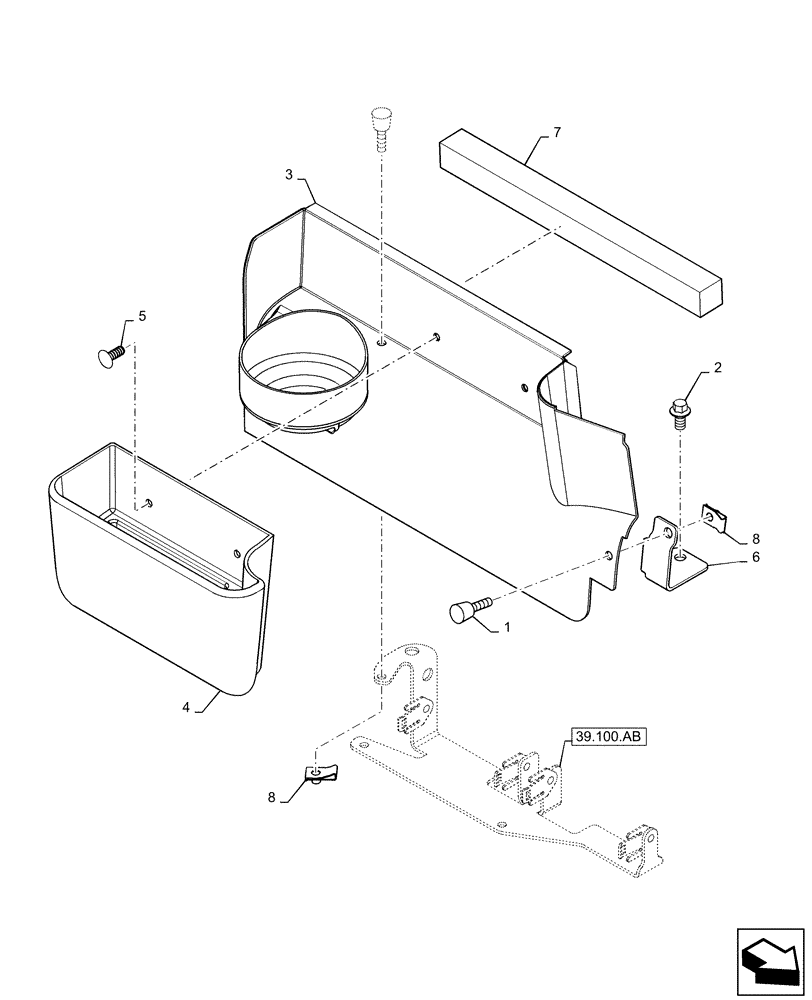

Схема запчастей Case TR310 - (55.100.DO[02]) - FUSE BOX COVER ASSY & CUP HOLDER (55) - ELECTRICAL SYSTEMS
39.100.ab
2
8
1
3
6
4
7
8
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

273890

THUMB SCREW,#10 - 32 x 3/4"

2шт.

2

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

3

84301221

COVER

Fuse

1шт.

4

84362695

BASKET

Storage

1шт.

5

87712706

FASTENER,16mm L, Nylon

16mm L

2шт.

6

84605133

BRACKET

Fuse Cover

1шт.

7

86508457

PAD

0.97 FT

1шт.

8

87301324

NUT,Spring, M5 x 0.8

2шт.
