(55.015.AG) - CCV JUMPER HARNESS & HOSE ASSY.

Запчасти Case TR310 (55.015.AG) - CCV JUMPER HARNESS & HOSE ASSY. (55) - ELECTRICAL SYSTEMS

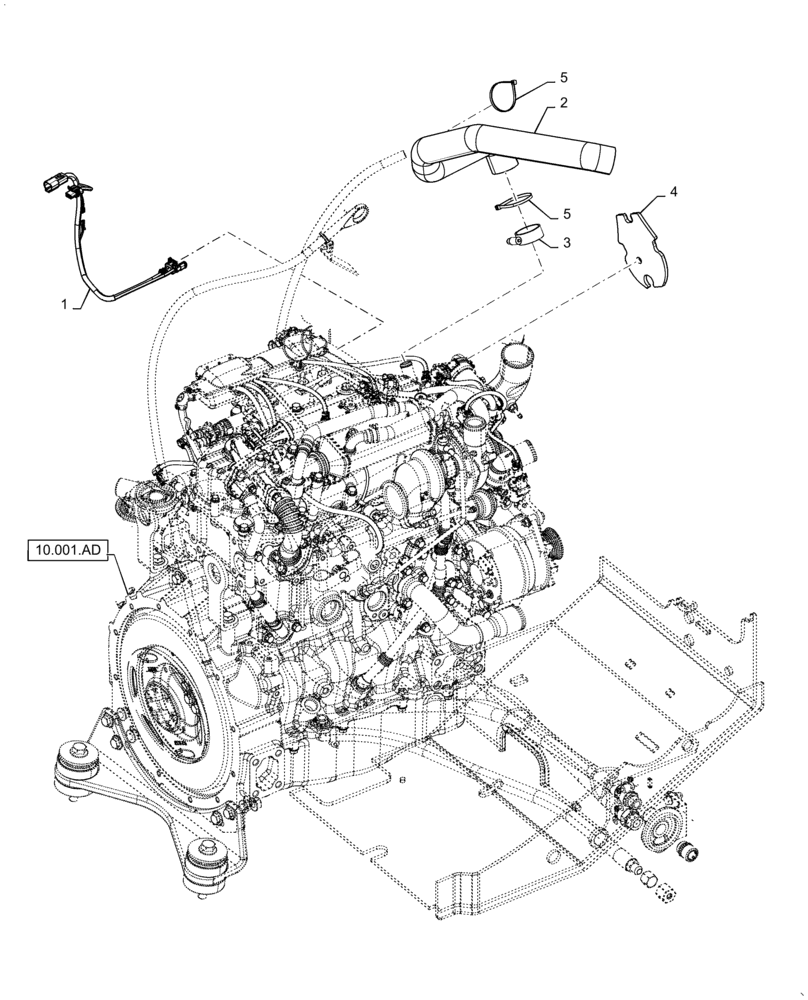

Схема запчастей Case TR310 - (55.015.AG) - CCV JUMPER HARNESS & HOSE ASSY. (55) - ELECTRICAL SYSTEMS
5
5
10.001.ad
1
4
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47717315

WIRE HARNESS

CCV Jumper

1шт.

2

47713698

HEATER HOSE

CCV, Assy

1шт.

3

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

4

47817431

FOAM INSULATION

151.8mm L x 6.35mm Thk, CCV Cover

1шт.

5

L11541

CABLE TIE,203.2mm L, Nylon

1шт.
