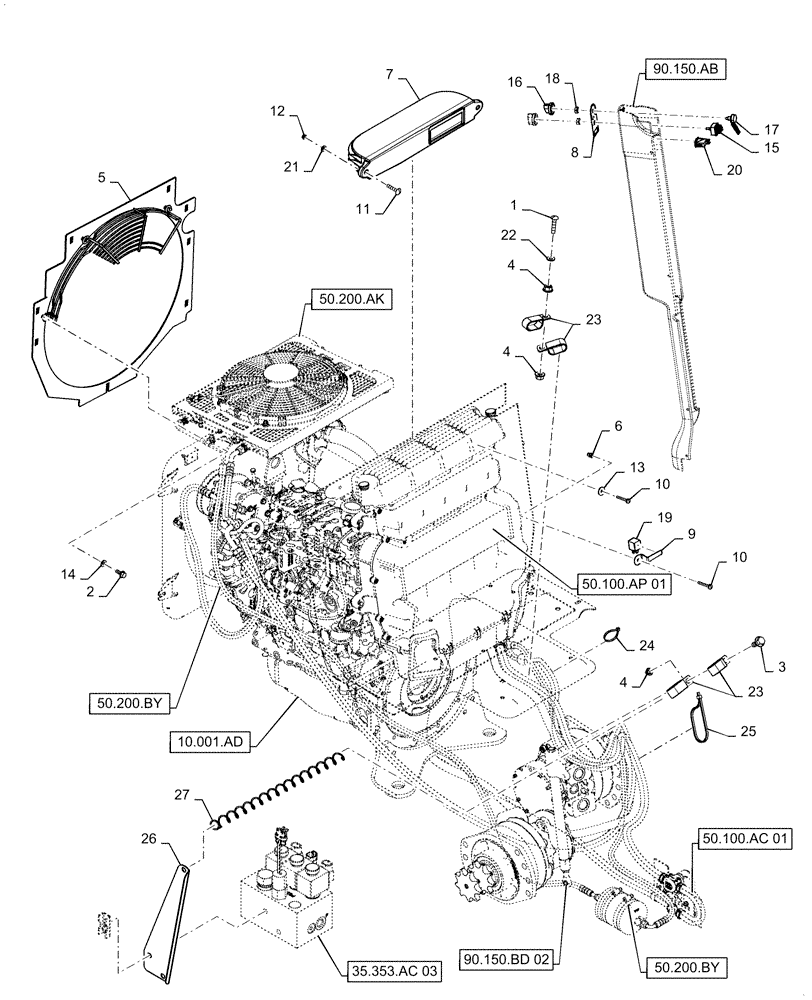

Запчасти Case TR310 (50.100.AP[03]) - HVAC SYSTEM (50) - CAB CLIMATE CONTROL

1

350459

CARRIAGE BOLT,Rnd Head, M10 x 1.5 x 50mm, Full Thd, Cl 8.8

1шт.

2

9804258

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

3

9804261

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

1шт.

4

9804278

FLANGE NUT,M10 x 1.5, Cl 8

3шт.

5

47580979

GUARD

Fan

1шт.

6

84272827

RIVET,Flat Flg Head, 12.7mm OD x 17.4mm L

4шт.

7

84280313

AIR DUCT

External

1шт.

8

84347258

DECAL

Heat A/C

1шт.

9

84380240

BRACKET

Relay

1шт.

10

86511833

SCREW,Phillips Drive, Pan HD, M6 x 40mm

4шт.

11

86512441

CARRIAGE BOLT,Rnd Head, M6 x 1 x 36.6mm, Cl 8.8

2шт.

12

86619800

FLANGE NUT,M6 x 1, Cl 8

2шт.

13

86624183

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

3шт.

14

86625263

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

15

86729669

SWITCH

Blower

1шт.

16

86729670

KNOB

Control

2шт.

17

86729675

SWITCH,5000 Ohm

Switch

1шт.

18

87310592

JAM NUT,7/16" - 28, Gr 5

2шт.

19

87355337

RELAY,12V, 45A

Blower

1шт.

20

87555249

SWITCH

31.75mm L, A/C

1шт.

21

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

22

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

1шт.

23

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

4шт.

24

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

Nylon

1шт.

26

84410905

BRACKET

Retention Spring

1шт.

27

412679A2

SPRING,Extension, 22.5mm OD x 173mm L

1шт.
