Запчасти Case TR310 (39.140.AM) - COUNTERWEIGHT (03-OCT-2016 & NEWER) (39) - FRAMES AND BALLASTING

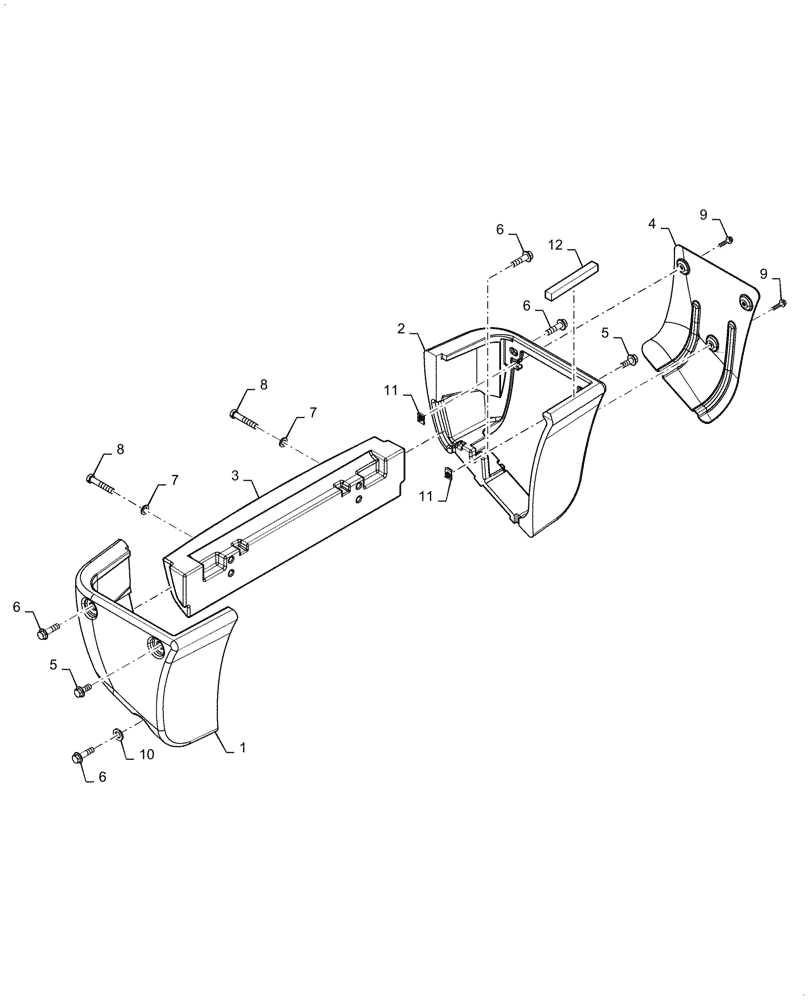

Схема запчастей Case TR310 - (39.140.AM) - COUNTERWEIGHT (03-OCT-2016 & NEWER) (39) - FRAMES AND BALLASTING
4
8
6
9
11
12
5
5
7
10
6
8
6
11
3
1
7
2
6
9

Артикул

Название

Примечание

Количество

1

47919147

BUMPER

Right, Gray

1шт.

2

47919150

BUMPER

Left, Gray

1шт.

3

47919152

BUMPER

Rear, Gray

1шт.

4

47919151

COVER

Battery Compartment, Gray

1шт.

5

87495304

FLANGE BOLT,M6 x 55.4mm, Cl 10.9

2шт.

6

87675533

BOLT,M16 x 75.4mm, Cl 10.9

4шт.

7

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

4шт.

8

350616

BOLT,M16 x 2 x 90mm, Cl 8.8

4шт.

9

9804263

BOLT,M10 x 49.2mm, Cl 8.8

3шт.

10

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

1шт.

11

86625071

SPRING NUT,M10 x 1.5

3шт.

12

84355546

FOAM INSULATION,215mm L

Adhesive

1шт.

Выбрано товаров: 12
