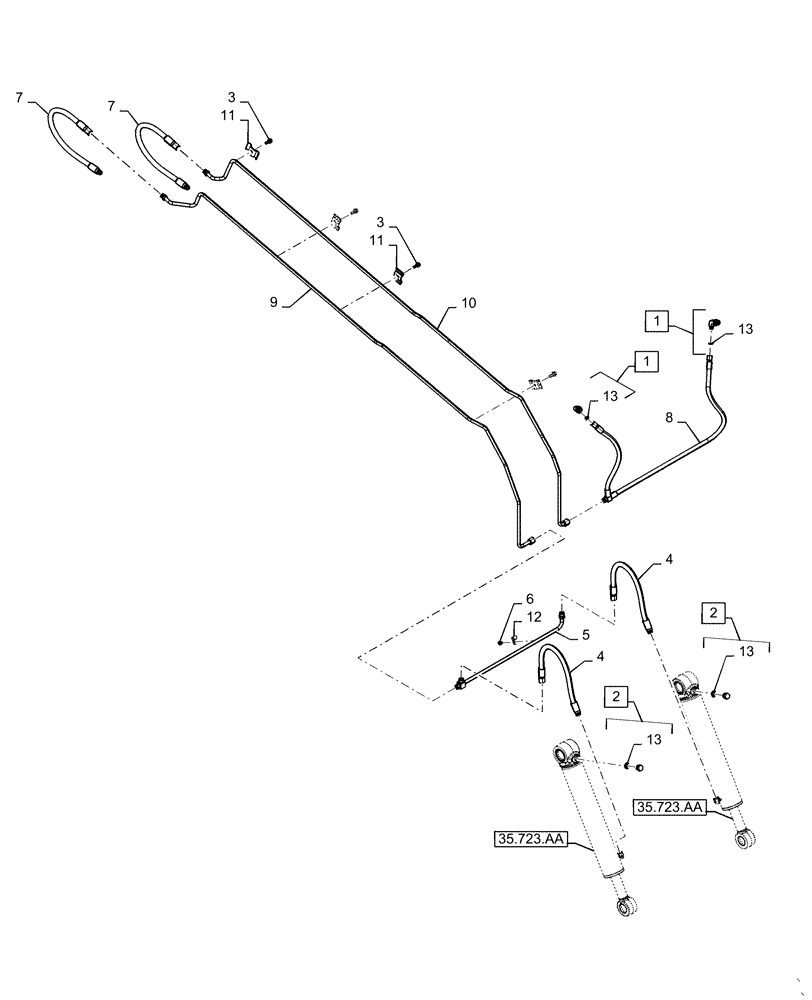

Запчасти Case TR310 (35.723.AB) - BUCKET CYLINDER LINES (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

Incl 13

2шт.

2

214389

PLUG,3/4" - 16 ORB

Incl 13

2шт.

3

280476

SELF-TAP SCREW,HWH, 3/8"-16 x 1"

4шт.

4

47505812

HOSE,12.5mm ID x 593mm L, SAE 100R16

Tip Cylinder

2шт.

5

47539052

TUBE

12.7mm OD, Tip Crossover

1шт.

6

84285339

SELF-TAP SCREW,Hex, M8 x 1.25 x 15mm

2шт.

7

84322590

FLEXIBLE HOSE,12.7mm ID x 661mm L, SAE 100R16

Tip Cylinder

2шт.

8

84346682

HOSE ASSY.,9.53mm ID x 1457mm L, SAE 100R17

Tip Cylinder Base

1шт.

9

84352341

HYD TUBE

12.7mm OD x 2651.2mm L, Tip Cylinder

1шт.

10

84352352

HYD TUBE

12.7mm OD x 2678.9mm L, Tip Cylinder

1шт.

11

86501706

CLAMP

78.9mm L, Double Tube

4шт.

12

86625036

CLAMP,12.7mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

13

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

4шт.
